120043.00

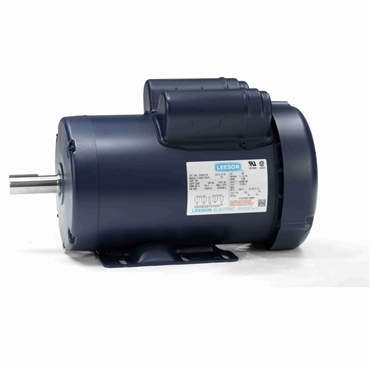

AC Motor

Item #102239239
each
    Shipment Options

Alternate Products

Product details

  • AC Motor
  • General Purpose Motor Application
  • 1 hp
  • 1140 rpm
  • Single Phase

Specifications

Enclosure TEFC
Voltage Rating 115/208-230
RPM 1140 rpm
Open End Bearing 6203
Efficiency Group 74 %
Phase Single Phase
Motor Application General Purpose
Hz 60
HP 1
Poles 6
Insulation B
Rotation Selective CCW
Frame 145T
Drive End Bearing 6205
Full Load Amps 12.8/6.2-6.4
Enclosure Designation Totally Enclosed Fan Cooled
Frame Material Rolled Steel
Mounting Rigid Base
Weight 52.0 LB
EAN or UPC 691720014899
