143THEN8034

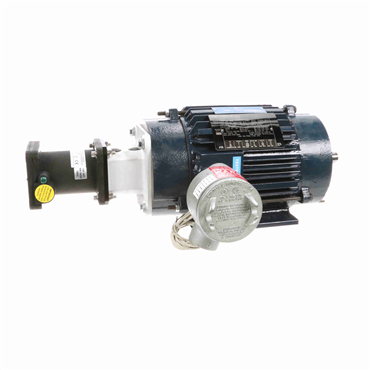

1 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Explosion Proof Motor

Item #105897306

Auto Replenish

each One-time purchase

Product Details

BEI H38 explosion proof encoder 1024 ppr, Class I Groups C & D,Class II Groups E, F, G included
MAX GUARD® Class F insulation system
Constant torque operation from 0 to base speed on vector drive
Constant Horsepower operation up to twice base RPM
Optimized for operation with IGBT inverter (NEMA Design A)
F1 standard, NOT field reversible to F2, Meets temperature code T3B
Suitable for Group C
Normally closed thermostats (one per phase, Class F)
Cast iron frame and brackets
UL listed file no. E12044, MC228275/ CSA certified file no. LR47504, MC236833

Specifications

No. of Poles	4
ODE Bearing Type	Ball
No. of Phases	Three
Electrical Type	Squirrel Cage Inverter Duty
Assembly/Box Mounting	F1/F2 CAPABLE
No. of Speeds	1
Efficiency	85.5
IP Rating	IP54
Insulation	F
Rotation	Reversible
Frame Material	Cast Iron
Speed [Max]	1756 rpm
Resistance Main	13.8
Drive End Bearing	6205
Enclosure Designation	Explosion Proof Non Ventilated
Starting Type	Inverter Only
Motor Orientation	Horizontal
Frame Length	7.5 in
Frame	143TC
Standard	UL Listed And CSA Certified
Power Factor	72
Shaft Extension	2.12 in
NEMA Design	INV
HP	1
KVA Code	M
DE Bearing Size	6205
Overload Protector	Thermostat
Voltage Rating	230/460
Voltage	230/460 V
Amps	3/1.5
Mounting	Rigid Base
Shaft Type	T
Motor Application	Explosion Proof
Insulation Class	F
Hazardous Location	DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C
Mounting Type	Rigid Base
Full Load Amps	3/1.5
Hz	60
Poles	4
Enclosure	EPNV
Duty	Continuous
DE Bearing Type	Ball
Open End Bearing	6205
Shaft Diameter	0.875 in
Service Factor	1
ODE Bearing Size	6205
Phase	Three Phase
Ambient Temperature Range [Max]	104 °F
Weight	86.0 LB
EAN or UPC	722856025548
