145TTFR16037

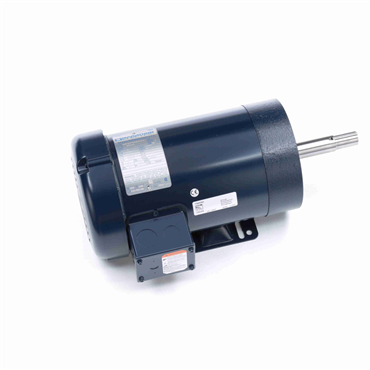

2 Hp 60 Hz 1800 rpm Explosion Proof Fan Cooled Three Phase Close-Coupled Pump Motor

Item #112848558

Auto Replenish

each One-time purchase

Product Details

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Suitable for use on a VFD, 10:1 variable torque and 2:1 constant torque.
Class F insulation(as noted) protects motor for a maximum temperature rating.
1.15 service factor on sinewave, 1.0 service factor on IGBT power.
Double sealed ball bearings mechanically locked on shaft end.

Specifications

NEMA Design	B
ODE Bearing Type	Ball
Service Factor	1.15
Shaft Diameter	0.875 in
Speed [Max]	1745 rpm
ODE Bearing Size	6203
Amps	5.8/2.9
Shaft Extension	4.25 in
IP Rating	IP43
No. of Poles	4
Motor Orientation	Horizontal
Enclosure	TEFC
Starting Type	Across The Line
HP	2
Ambient Temperature Range [Max]	104 °F
KVA Code	L
Frame Material	Rolled Steel
Voltage	230/460 V
Duty	Continuous
Efficiency	86.5
Hz	60
Shaft Type	JM
Mounting Type	Rigid Base
Electrical Type	Squirrel Cage Induction Run
Standard	CE, CSA, UL Recognized
Power Factor	75.6
DE Bearing Size	6206
No. of Phases	Three
Frame Length	8 in
Frame	145JM
No. of Speeds	1
Assembly/Box Mounting	F1 Only
Insulation Class	F
Rotation	Reversible
DE Bearing Type	Ball
Resistance Main	6
Weight	76.0 LB
EAN or UPC	722856004888
