DSB22447H12

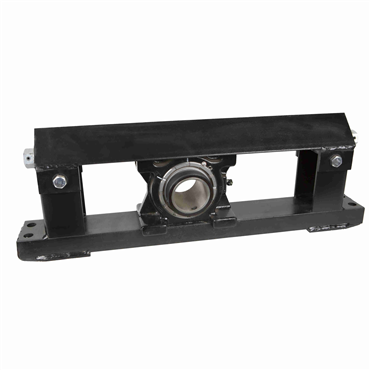

2 15/16 in Setscrew Locking Top Angle Protected Screw Take Up Assembly

Item #100739029

Auto Replenish

each One-time purchase

Product Details

Specifications

Fixed Expansion	Fixed
Travel Length	12 in
Type	Spherical Roller Bearing
Speed [Max]	1950 rpm
Overall Width	4 in
Vibration Frequency Outer Ring Defect	0.13 cps
Housing Material	Cast Iron
Dynamic Load Rating	51100 lb
Housing Coating	Powder Coated
Bearing Type	Spherical Roller Bearing
Vibration Frequency Fundamental Train	0.007 cps
Mounting Bolt Size	5/8 in
Microlock Kit	B440MLK
Frame Material	Welded Steel
Vibration Frequency Roller Spin	0.059 cps
Temperature [Max]	225 °F
Grease Fitting Size	1/8 NPT
Available Seal Type	E Lip Seal, H Labyrinth Seal, E7 Triple Lip Seal
Locking Device	Spring Locking Collar
Setscrew Torque	680 in/lbs
Frame Height	10 5/8 in
Travel	12 in
Bolt Hole Spacing - Length	30 1/2 in
Static Load Rating	71500 lb
Shaft Dia.	2 15/16 in
End Closure	None
Housing Width	5 1/8 in
Locking Collar O.D.	4 1/16 in
Base Height	2 in
Base to Centerline Height	5 1/8 in
Frame Width	4 in
Mounting Pad Height	2 in
Shaft Locking	Single Set Collar
Take-Up Types	Top Angle Protected Screw
Base Length	32 1/2 in
Frame Length	32 1/2 in
Vibration Frequency Inner Ring Defect	0.17 cps
Primary Seal	Steel Clearance Seal
Retainer Type	Steel
Bolt Size	5/8 in
Frame Bolt Hole Spacing	30 1/2 in
Seal Type	Clearance Seals
Internal Clearance	C0 Standard
Bolt Hole Spacing - Width	2 in
Base Width	4 in
Lubrication Type	EXXON RONEX MP STD
Weight	90.238 LB
EAN or UPC	662327021818
