KFXSS2E20

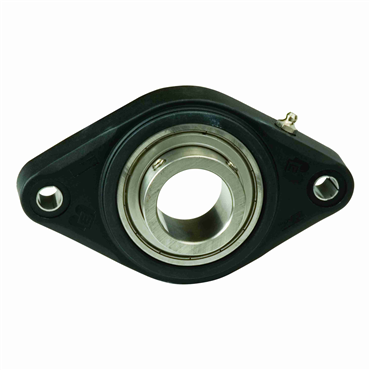

1 1/4 in Setscrew Locking Intermediate Duty 2 Bolt Flange Block

Item #101675361

Auto Replenish

each One-time purchase

Product Details

Specifications

Mounting Bolt Size	3/8 in
No. of lips	Single
Speed [Max]	5600 rpm
Bolt Size	3/8 in
Special Lube Fitting	Std Fitting Plus Plastic Plug
Setscrew Torque	165-185 in/lbs
RPM [Max]	5600 rpm
Available Seal Type	E Lip Seal, Closed Unit w/ End Cap & Seal, Open Unit w/ Auxiliary Seal
Shaft Locking	Setscrew
Bearing Coating Material	Stainless Steel
Mounted Unit Duty	Intermediate Duty
Set Screw Torque	165-185 in/lbs
Vibration Frequency Outer Ring Defect	0.06 cps
Bolt Hole Spacing	4.61 in
Vibration Frequency Roller Spin	0.039 cps
Internal Clearance	C3 Standard
Temperature Range [Max]	194 °F
Locking Device	Setscrew Locking
Shaft Dia.	1.25 in
Seal Type	Single Lip Contact Seal
Grease Fitting Size	RP 1/8 PAR
Dynamic Load Rating	4390 lb
Bearing Design	Non-Expansion
Inch/Metric	Inch
Housing Material	Polyamide
Overall Width	1 3/4 in
Static Load Rating	2530 lb
Lubrication Type	MOBIL FM222 FOOD GRADE H1
Vibration Frequency Fundamental Train	0.007 cps
Bore Length	1 11/32 in
Series	200
Distance Between Bolt Holes	4.61 in
Temperature [Max]	194 °F
Bearing Type	Ball Bearing
Duty Type	Intermediate
Flange Type	2-Bolt Flange
Bore Range [Max]	1.5 in
Bore Range [Min]	0.75 in
Housing Length	5 53/64 in
Housing Diameter	3 11/32 in
Lubricant Type	Chevron FM2
Retainer Type	Stainless Steel
Fixed Expansion	Fixed
No. of Bolts	2
Mounting Housing Width	1 1/64 in
Length Through Bore	1.34375 in
Insert Material	Stainless Steel
Vibration Frequency Inner Ring Defect	0.091 cps
Flange Thickness	1 1/64 in
Weight	1.12 LB
EAN or UPC	793699442496
