MPS216N

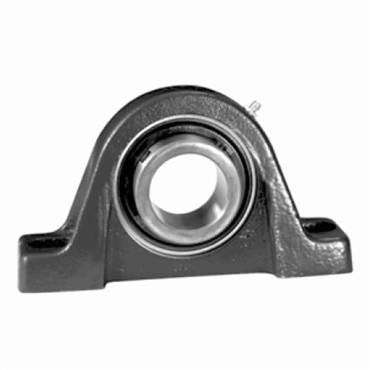

1 in Medium Duty Cast Iron 2 Bolt Pillow Block

Item #111362136

Auto Replenish

each One-time purchase

Product Details

Specifications

Speed [Max]	8000 rpm
Series	200
Handle / Housing Material	Cast Iron
Mounting Bolt Hole Slot Length	15/16 in
I.D.	1 11/32 in
Center of Bearing to End of Cover	1 29/64 in
Dynamic Load Rating	4390 lb
Grease Fitting Size	1/8 NPT
Length Through Bore	1.34375 in
Vibration Frequency Outer Ring Defect	0.06 cps
Vibration Frequency Roller Spin	0.039 cps
Bolt Hole Length	15/16 in
Duty	Medium-Duty
Mounting Pad Width	1 5/8 in
Static Load Rating	2530 lb
Bearing Type	Ball Bearing
Distance Between Bolt Holes	4 5/8 in
Mounting Pad Length	6 5/16 in
Internal Clearance	C3 Standard
Coating	Powder Coated
Base Width	1 5/8 in
No. of Bolts	2
Inch/Metric	Inch Bore
Duty Type	Medium
Retainer Type	Nylon
Flange Type	2-Bolt Flange
Shaft Locking	Setscrew
Temperature [Max]	225 °F
Bolt Hole Spacing	4 5/8 in
Base to Centerline Height	1 11/16 in
Bolt Size	1/2 in
Mounting Pad Height	11/16 in
Center of Bearing to Front of Inner Ring	61/64 in
Base Height	11/16 in
Static Load Rating [Max]	2530 lbf
Primary Seal	Buna Single Lip Contact Seal
Housing Material	Cast Iron
Mounting Bolt Size	1/2 in
Locking Device	Setscrew Locking
Size Code	206
Seal Type	Single Lip Contact Seal
Locking Type	Setscrew Locking
Housing Height	3 5/16 in
Lubrication Type	EXXON RONEX MP STD
Setscrew Torque	165-185 in/lbs
Fixed Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.091 cps
Shaft Dia.	1 in
Bearing Design	Non-Expansion
Vibration Frequency Fundamental Train	0.007 cps
Temperature Range [Max]	225 °F
Weight	2.54 LB
EAN or UPC	662864805520
