PA339

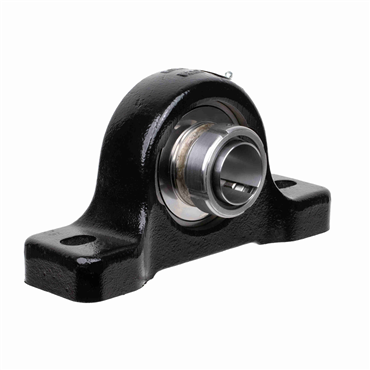

2 7/16 in Heavy Duty Cast Iron 2 Bolt Pillow Block

Item #102355312

Auto Replenish

each One-time purchase

Product Details

Specifications

Internal Clearance	C3 Standard
Dynamic Load Rating	18390 lb
Bearing Design	Non-Expansion
Mounting Pad Height	1 5/8 in
No. of Bolts	2
Locking Device	Adapter Mounted
Vibration Frequency Roller Spin	0.034 cps
Vibration Frequency Inner Ring Defect	0.082 cps
Bearing Type	Ball Bearing
Vibration Frequency Fundamental Train	0.006 cps
I.D.	3 27/32 in
Base to Centerline Height	3 5/8 in
Duty	Heavy-Duty
Base Width	3 1/2 in
Duty Type	Heavy
Retainer Type	Nylon
Length Through Bore	3.84375 in
Base Length	13 3/4 in
Bolt Hole Length	1 3/8 in
Handle / Housing Material	Cast Iron
Housing Height	7 1/8 in
Temperature Range [Max]	225 °F
Seal Type	Clearance Seals
Primary Seal	Clearance Seal With Flingers
Vibration Frequency Outer Ring Defect	0.051 cps
Distance Between Bolt Holes	11 1/4 in
Total Expansion Capability	9/32 in
Center of Bearing to Front of Inner Ring	2 25/64 in
Shaft Dia.	2.4375 in
Mounting Pad Width	3 1/2 in
Speed [Max]	4450 rpm
Setscrew Torque	87-92 in/lbs
Coating	Powder Coated
Mounting Bolt Size	3/4 in
Grease Fitting Size	1/8 NPT
Mounting Pad Length	13 3/4 in
Bolt Size	3/4 in
Lubrication Type	EXXON RONEX MP STD
Static Load Rating	11700 lb
Temperature [Max]	225 °F
Mounting Bolt Hole Slot Length	1 3/8 in
Locknut O.D.	3 19/32 in
Series	300
Bolt Hole Spacing	11 1/4 in
Base Height	1 5/8 in
Fixed Expansion	Fixed
Housing Material	Cast Iron
Shaft Locking	Shurlok Tapered Adapter
Flange Type	2-Bolt Flange
Inch/Metric	Inch Bore
Weight	27.0 LB
EAN or UPC	662864296854
