PB22539FH

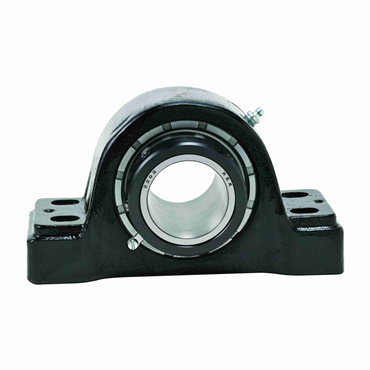

2 7/16 in Cast Iron Setscrew Locking 4 Bolt Pillow Block

Item #100738950

Auto Replenish

each One-time purchase

Product Details

Specifications

Bolt Hole Spacing	2 5/8 in
Retainer Type	Steel
Setscrew Torque	680 in/lbs
Housing Material	Cast Iron
Mounting Pad Height	2.13 in
Mounting Bolt Hole Slot Length	1 1/8 in
Locking Collar O.D.	3 9/16 in
Inch/Metric	Inch Bore
I.D.	4 3/8 in
Primary Seal	Steel Clearance Seal
No. of Bolts	4
Coating	Powder Coated
Shaft Dia.	2.4375 in
Speed [Max]	2300 rpm
Temperature [Max]	225 °F
Fixed Expansion	Fixed
Locking Type	Setscrew Locking
Microlock Kit	B448MLK
Vibration Frequency Fundamental Train	0.007 cps
Vibration Frequency Inner Ring Defect	0.179 cps
Internal Clearance	C0 Standard
Base to Centerline Height	3 in
Distance Between Bolt Holes	8 5/8 in
Dynamic Load Rating	38300 lb
Vibration Frequency Outer Ring Defect	0.138 cps
Static Load Rating	53500 lb
Mounting Pad Width	4 3/8 in
Vibration Frequency Roller Spin	0.061 cps
Mounting Pad Length	10 5/8 in
Lubrication Type	EXXON RONEX MP STD
Bearing Type	Spherical Roller Bearing
Shaft Locking	Double Set Collar
Mounting Bolt Size	1/2 in
Weight	27.5 LB
EAN or UPC	662327110864
