PLB6835R

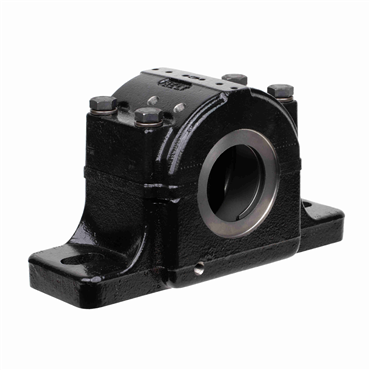

2 3/16 in Cast Iron 2 Bolt Pillow Block

Item #102108656

Auto Replenish

each One-time purchase

Product Details

Specifications

Vibration Frequency Fundamental Train	0.007 cps
Dynamic Load Rating	38000 lb
Speed Using Oil [Max]	4300 rpm
Static Load Rating	46500 lb
Speed Using Grease [Max]	3800 rpm
Lubrication	Relubricatable
Shaft Locking	Tapered Adapter Mount
No. of Bolts	2
Bolt Size	5/8 in
Vibration Frequency Outer Ring Defect	0.127 cps
Base Length	11 in
Shaft Dia.	2.1875 in
Base Height	1 in
Coating	Powder Coated
Locking Device	Adapter Mounted
Temperature [Max]	225 °F
Grease Fitting Size	1/8 NPT
Bolt Hole Spacing - Width	N/A
Pillow Block Type	Thru-Bolt
Mounted Unit Duty	Heavy-Duty
Bearing Design	Non-Expansion
Primary Seal	Ler Triple Ring Seal
Seal Type	R Labyrinth LER Seals
Series	6800
Internal Clearance	C3 Standard
Cap Bolt Torque	45-50 ft-lbs
Bearing Type	Spherical Roller Bearing
Mounting Bolt Size	5/8 in
Retainer Type	Steel
Center Line to Base Dimension [Min]	3 in
Temperature Range [Max]	225 °F
Mounting Pad Width	3 1/4 in
Overall Width	4 3/8 in
End Type	Open End
Mounting Pad Height	1 in
Mounting Pad Length	11 in
Size Code	22213
Bolt Hole Spacing Range [Max]	9 1/2 in
Housing Material	Cast Iron
Bearing Insert	22213LBK
Bolt Hole Spacing Range [Min]	8 1/8 in
Fixed Expansion	Fixed-Expansion
Vibration Frequency Roller Spin	0.052 cps
Housing Height	5 15/16 in
Housing Construction	2 Piece
Vibration Frequency Inner Ring Defect	0.173 cps
Bolt Holes	2
Housing Width	4 3/8 in
Inch/Metric	Inch Bore
Base Width	3 1/4 in
Bolt Hole Spacing	8 13/16 in
Base to Centerline Height	3 in
Weight	45.0 LB
EAN or UPC	662327116729
