PT3CL231N

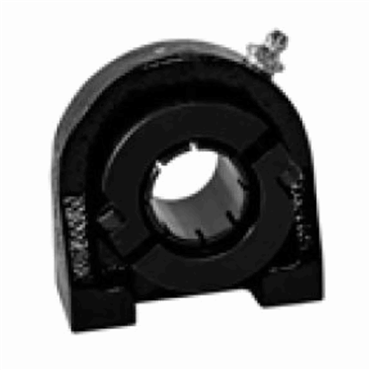

1 15/16 in Standard Duty Cast Iron 2 Bolt Pillow Block

Item #101705009

Auto Replenish

each One-time purchase

Product Details

Specifications

Bolt Hole Spacing	4 in
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.068 cps
Vibration Frequency Inner Ring Defect	0.099 cps
Bearing Type	Ball Bearing
Handle / Housing Material	Cast Iron
Distance Between Bolt Holes	4 in
Overall Width	3 3/4 in
Vibration Frequency Fundamental Train	0.007 cps
Temperature [Max]	225 °F
Series	200
Shaft Locking	Centrik-Lok Cl 2 Piece Collar
Static Load Rating	5220 lb
Static Load Rating [Max]	5220 lbf
Base Length	5 7/16 in
No. of Bolts	2
Coating	Powder Coated
Seal Type	Single Lip Contact Seal
Duty Type	Standard
Mounting Pad Width	2 in
Temperature Range [Max]	225 °F
Internal Clearance	C3 Standard
Bearing Coating Material	Black Oxide
Inch/Metric	Inch Bore
Lubrication Type	EXXON RONEX MP STD
I.D.	2 3/32 in
Thread Size	5/8-11
Bearing Design	Non-Expansion
Setscrew Torque	313-348 in/lbs
Base to Centerline Height	2 1/4 in
Housing Height	4 1/2 in
Duty	Standard-Duty
Vibration Frequency Roller Spin	0.045 cps
Primary Seal	Buna Single Lip With Flinger
Base Width	2 in
Locking Device	Centrik-Lok CL Locking Collar
Mounting Pad Length	5 7/16 in
Tap Depth	7/8 in
Speed [Max]	4800 rpm
Center of Bearing to Front of Inner Ring	1 21/64 in
Retainer Type	Nylon
Length Through Bore	2.09375 in
Size Code	210
Flange Type	2-Bolt Flange
Dynamic Load Rating	7920 lb
Locking Collar O.D.	3 3/4 in
Grease Fitting Size	1/8 NPT
Shaft Dia.	1.9375 in
Fixed Expansion	Fixed
Weight	6.34 LB
EAN or UPC	662864566704
