T3U235N

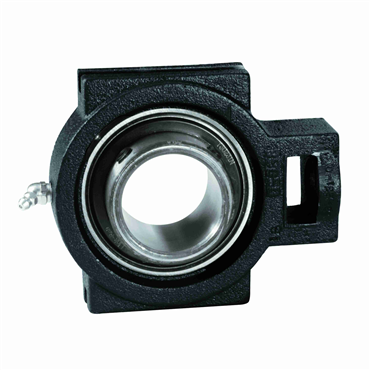

2 3/16 in Cast Iron Standard Duty Setscrew Locking Single Lip Take Up Block

Item #100991752

Auto Replenish

each One-time purchase

Product Details

Specifications

Slot Spacing	4.5 in
Base to Centerline Height	3 25/32 in
Shaft Locking	Setscrew
Inch/Metric	Inch
Housing Height	5 1/4 in
Retainer Type	Nylon
Bearing Design	Non-Expansion
Lubrication Type	EXXON RONEX MP STD
Static Load Rating	6570 lb
Housing Coating	Powder Coated
Take-Up Slot Length	3 3/4 in
Slot Length	0.531 in
Vibration Frequency Outer Ring Defect	0.068 cps
Vibration Frequency Inner Ring Defect	0.099 cps
Seal Type	Single Lip Contact Seal
Screw Diameter	1 1/8 in
Overall Height	5.25 in
Housing Width	1 9/16 in
Bore Length	2 1/4 in
Internal Clearance	C3 Standard
Grease Fitting Size	1/8 NPT
Type	Ball Bearing
Speed [Max]	4360 rpm
Setscrew Torque	290-325 in/lbs
Bearing Type	Ball Bearing
Vibration Frequency Roller Spin	0.044 cps
Vibration Frequency Fundamental Train	0.007 cps
Shank Height	2 7/8 in
Housing Material	Cast Iron
Housing Length	6 1/4 in
Shaft Dia.	2 3/16 in
Overall Height [Min]	5.25 in
Locking Device	Spring Locking Collar
Adjustment Slot Width	3/4 in
Dynamic Load Rating	9800 lb
Duty Type	Standard
Temperature [Max]	225 °F
Overall Length	6.25 in
Length Through Bore	2.25 in
Between Frame Width	4 1/2 in
Temperature Range [Max]	225 °F
Fixed Expansion	Fixed
Adjustment Pad Height	2 7/8 in
Lubrication	Relubricatable
Primary Seal	Buna Single Lip Contact Seal
Available Seal Type	E3 Triple Lip Seal, N Lip Seal, H Labyrinth Seal
Slot Width	0.53125 in
Weight	7.455 LB
EAN or UPC	662327148447
