WTH3S224E

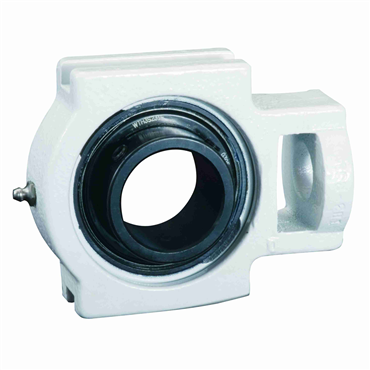

1 1/2 in Cast Iron Intermediate Duty Setscrew Locking Single Lip Take Up Block

Item #102139673

Auto Replenish

each One-time purchase

Product Details

Specifications

Primary Seal	Buna Single Lip Contact Seal
Dynamic Load Rating	7330 lb
Lubrication Type	MOBIL FM222 FOOD GRADE H1
Shank Height	2 27/32 in
Vibration Frequency Inner Ring Defect	0.091 cps
Static Load Rating	4460 lb
Setscrew Torque	165-185 in/lbs
Bearing Design	Non-Expansion
Slot Spacing	3.969 in
Temperature Range [Max]	225 °F
Housing Width	1 5/16 in
Type	Ball Bearing
Bearing Type	Ball Bearing
Take-Up Slot Length	3 1/4 in
Grease Fitting Size	1/8 NPT
Adjustment Slot Width	3/4 in
Slot Length	0.688 in
Duty Type	Intermediate
Overall Height [Min]	4.75 in
Vibration Frequency Outer Ring Defect	0.059 cps
Speed [Max]	4500 rpm
Retainer Type	Nylon
Internal Clearance	C3 Standard
Adjustment Pad Height	2 27/32 in
Overall Length	5.5625 in
Screw Diameter	1 1/8 in
Bore Length	1 21/32 in
Length Through Bore	1.65625 in
Take-Up Types	Wide Slot
Seal Type	Single Lip Contact Seal
Slot Width	0.688 in
Housing Material	Cast Iron
Shaft Dia.	1 1/2 in
Locking Device	Spring Locking Collar
Vibration Frequency Fundamental Train	0.007 cps
Housing Length	5 9/16 in
Base to Centerline Height	3 15/32 in
Vibration Frequency Roller Spin	0.037 cps
Available Seal Type	E Lip Seal
Shaft Locking	Setscrew
Fixed Expansion	Fixed
Housing Coating	Nylon Coated
Lubrication	Relubricatable
Housing Height	4 3/4 in
Bearing Coating Material	Black Oxide
Between Frame Width	3.969 in
Temperature [Max]	225 °F
Weight	5.44 LB
EAN or UPC	662327482947
