YBG220NL

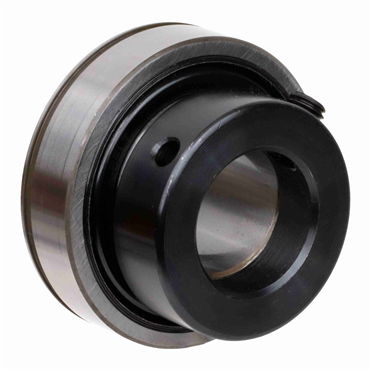

1 1/4 in Standard Duty Eccentric Cam Locking Collar Single Lip Ball Bearing

Item #101675370

Auto Replenish

each One-time purchase

Product Details

Specifications

Speed [Max]	6850 rpm
Inner Ring Width	1.484 in
Retainer Type	Nylon
Collar O.D.	2 3/16 in
Static Load Rating	3440 lb
I.D.	1.250 in
Vibration Frequency Fundamental Train	0.007 cps
Vibration Frequency Roller Spin	0.038 cps
Bore Dia. [Max]	2 7/16 in
Duty Type	Standard
Locking Collar O.D.	2 3/16 in
Length Through Bore	2.01563 in
Seal Type	N Lip Seals
Locking Device	Eccentric Cam Locking Collar
Rolling Element	Ball Bearing
Short Hub Length	0.742 in
Set Screw Torque	290 to 325 in lb
Bearing Type	Ball Bearing
Series	200
Internal Clearance	C3 Standard
Shaft Locking	Eccentric Locking Collar
Lubrication	Relubricatable Exxon Ronex MP
Dynamic Load Rating	5810 lb
Vibration Frequency Inner Ring Defect	0.091 cps
Bore Type	Round Bore
Lubrication Type	EXXON RONEX MP STD
RPM [Max]	6850 rpm
Enclosure	Double Sealed
Locking Collar Width	11/16 in
Temperature [Max]	225 °F
Duty	Standard-Duty
O.D.	2.835 in
Inch/Metric	Inch Bore
Bore Length	2 1/64 in
Outer Ring Width	0.748 in
Bore Dia. [Min]	1/2 in
Bearing Design	Non-Expansion
Setscrew Torque	290-325 in/lbs
Temperature Range [Max]	225 °F
Vibration Frequency Outer Ring Defect	0.06 cps
Inner Ring Hub Diameter	1.847 in
No. of lips	Single
Outer Ring Fillet Radius	0.039 in
Available Seal Type	E3 Triple Lip Seal, N Lip Seal, H Labyrinth Seal
Primary Seal	Buna Single Lip Contact Seal
Weight	1.6 LB
EAN or UPC	662327433420
