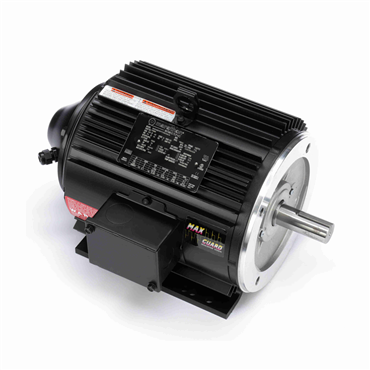

3 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Encoder Motor

182THTY17041

3 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Encoder Motor
Item #113050604
  • 3 HP - Three Phase
  • 60 Hz - 182TC Frame
  • 230/460 V
  • 1755 rpm
3 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Encoder Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 3 HP - Three Phase
  • 60 Hz - 182TC Frame
  • 230/460 V
  • 1755 rpm

features

  • Integrated Dynapar HS20 1024 ppr encoder
  • Class F insulation with CR200 corona resistant magnet wire
  • Constant Torque operation from 0 to base speed on Vector Drive
  • Field reversible to F2
  • Aluminum frame construction
Hz 60
Ambient Temperature Range [Max] 104 °F
Amps 9.6/4.8
DE Bearing Size 6207
Service Factor 1
No. of Poles 4
Insulation Class F
Efficiency 87.5
Shaft Extension 2.62 in
Voltage Rating 230/460
ODE Bearing Type Ball
No. of Phases Three
Standard CE, CSA, UL Recognized
Mounting Type Rigid Base
Frame Length 9.5 in
Voltage 230/460 V
No. of Speeds 1
DE Bearing Type Ball
Frame Material Aluminum
ODE Bearing Size 6206
Enclosure TENV
NEMA Design INV
HP 3
Open End Bearing 6206
Rotation Reversible
Mounting Rigid Base
Duty Continuous
Shaft Diameter 1.125 in
Motor Orientation Horizontal
Drive End Bearing 6207
Motor Application Inverter Duty, Encoder Provided
Insulation F
KVA Code M
Full Load Amps 9.6/4.8
Enclosure Designation Totally Enclosed Non Ventilated
Speed [Max] 1755 rpm
Phase Three Phase
Poles 4
Power Factor 80
Frame 182TC
Electrical Type Squirrel Cage Inverter Duty
IP Rating IP43
Shaft Type T
Assembly/Box Mounting F1/F2 CAPABLE
Starting Type Inverter Only
Weight 0.0 LB
EAN or UPC 722856132420
