215THTCD8071

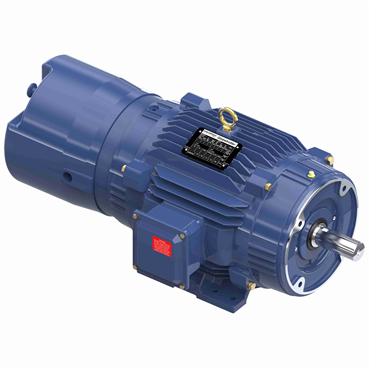

10 Hp 60 Hz 1800 rpm Drip Proof Three Phase Brake Motor

Item #118896678

Auto Replenish

each One-time purchase

Product Details

IP-55, MaxGuard® inverter Duty insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted)
2000:1 Constant torque operation from 0 to base speed on vector drive
Double-shielded ball bearings
MAX GUARD® Class H insulation system
Normally closed thermostats (one per phase, Class F), Modifications and Kits are available
Constant Horsepower operation up to twice base RPM
40°C Ambient 1.0SF inverter power
Stearns NEMA 2 - 87,000 Series Brake, Provisions for Encoder (A 50 lb-ft brake, With Brake Coil Volts of 208-230/460-190/380)
Removable rigid base, as noted
UL Recognized, CSA Certified, and CE Mark

Specifications

DE Bearing Type	Ball
No. of Speeds	1
Service Factor	1
Amps	25/12.5
NEMA Design	INV
Mounting Type	Rigid Base
Ambient Temperature Range [Max]	104 °F
Standard	CE, CSA, UL Recognized
No. of Poles	4
Efficiency	91.7
ODE Bearing Type	Ball
Enclosure	TENV
Speed [Max]	1770 rpm
Shaft Type	T
Starting Type	Inverter Only
No. of Phases	Three
Insulation Class	H
Rotation	Reversible
HP	10
Assembly/Box Mounting	F1/F2 CAPABLE
IP Rating	IP55
Power Factor	81
DE Bearing Size	6309
Electrical Type	Squirrel Cage Inverter Duty
Motor Orientation	Horizontal
ODE Bearing Size	6308
Hz	60
Frame	215TC
KVA Code	L
Resistance Main	0.753
Overload Protector	Thermostat
Duty	Continuous
Voltage	230/460 V
Frame Material	Cast Iron
Shaft Diameter	1.375 in
Weight	211.0 LB
EAN or UPC	722856211781
