254THEN8058

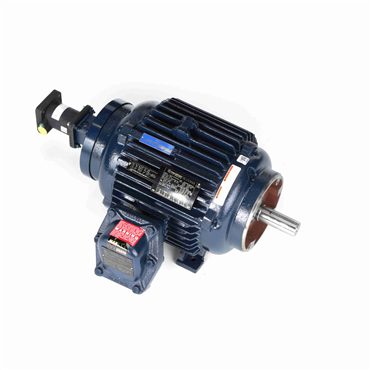

7.5 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Explosion Proof Motor

Item #113091928

Auto Replenish

each One-time purchase

Product Details

BEI H38 explosion proof encoder 1024 ppr, Class I Groups C & D,Class II Groups E, F, G included
MAX GUARD® Class F insulation system
Constant torque operation from 0 to base speed on vector drive
Constant Horsepower operation up to twice base RPM
Continuous duty at 40°C ambient
Optimized for operation with IGBT inverter (NEMA Design A)
Normally closed thermostats (one per phase, Class F)
Cast iron frame and brackets
F1 standard, NOT field reversible to F2, Meets temperature code T3B
UL listed file no. E12044, MC228275, CSA certified file no. LR47504, MC236833

Specifications

Voltage	230/460 V
Duty	Continuous
Hazardous Location	DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B
Amps	22/11
Shaft Type	T
ODE Bearing Size	6309
Frame Length	1.5 in
Power Factor	69
Frame	254TC
Shaft Diameter	1.625 in
No. of Poles	4
IP Rating	IP54
Assembly/Box Mounting	F1/F2 CAPABLE
Speed [Max]	1782 rpm
ODE Bearing Type	Ball
Mounting Type	Rigid Base
Insulation Class	F
DE Bearing Type	Ball
Resistance Main	0.76
Shaft Extension	3.75 in
Enclosure	EPNV
KVA Code	M
Hz	60
Ambient Temperature Range [Max]	104 °F
HP	7.5
Efficiency	91.7
Motor Orientation	Horizontal
Overload Protector	Thermostat
Standard	UL Listed And CSA Certified
Electrical Type	Squirrel Cage Inverter Duty
No. of Speeds	1
DE Bearing Size	6309
NEMA Design	INV
Starting Type	Inverter Only
Service Factor	1
No. of Phases	Three
Frame Material	Cast Iron
Rotation	Reversible
Weight	260.0 LB
EAN or UPC	722856025586
