324TTTS16535

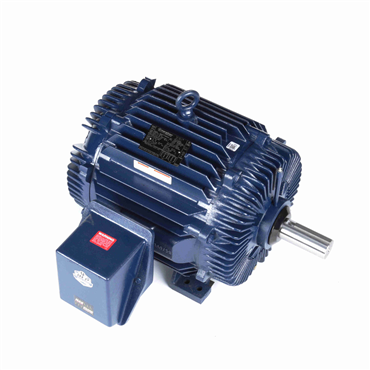

40 Hp 60 Hz 1800 rpm Explosion Proof Fan Cooled Three Phase Severe Duty Motor

Item #112848943

Auto Replenish

each One-time purchase

Product Details

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
Internal and external epoxy paint
MAX GUARD® Class F insulation system
1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Extended grease tubes, Regreasable in service
T-drains provided for effective drainage (Installed in both endshields)
Suitable for all angle mounting
Suitable for 20:1 VT and 20:1 CT on VFD

Specifications

ODE Bearing Size	6311
IP Rating	IP56
Mounting	Rigid Base
NEMA Design	B
Efficiency	94.1
RPM	1800 rpm
KVA Code	G
Frame Size	324T
Rotation	Reversible
Power Factor	83
Frame	324TV
Enclosure	TEAO
Resistance Main	0.13500000000000001
Voltage Rating	230/460
Service Factor	1.15
Efficiency Group	NEMA Premium®
Motor Application	Severe Duty
Mounting Type	Rigid Base
Starting Type	Line Or Inverter
Voltage	230/460 V
Shaft Type	T
Standard	CE, CSA, UL Recognized
Ambient Temperature Range [Max]	104 °F
ODE Bearing Type	Ball
Washdown Duty	No
Hz	60
Mult. Sym.	S3
Electrical Type	Squirrel Cage Inverter Rated
Frame Length	13 in
Shaft Diameter	2.125 in
DE Bearing Type	Ball
Epact Nominal Full Load Efficiency	94.1 %
Phase	Three Phase
Assembly/Box Mounting	F1/F2 CAPABLE
No. of Poles	4
Full Load Amps	95.0/47.5
Insulation Class	F
Insulation	F
Frame Material	Cast Iron
Duty	Continuous
DE Bearing Size	6312
No. of Phases	Three
No. of Speeds	1
HP	40
Shaft Extension	5.5 in
Motor Orientation	Horizontal Or Up Or Down
Speed [Max]	1780 rpm
Amps	95/47.5
Weight	567.0 LB
EAN or UPC	722856132277
