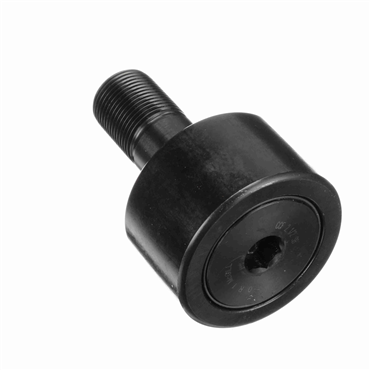

- Standard Stud - Sealed
- Bearing Steel - Crowned Roller
- 2.25 in Stud Length
- 1-14 Thread Size
applications
- Heavy loading
- Misalignment of track of housing
- Turntable or rotary cams
features
- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
| Stud Diameter - Inch | 1 |
| Dynamic Load Rating (lb) | 11720 |
| Hole Type | Hex Hole |
| Inch/Metric | Inch |
| Lubrication Fitting Size - Inch | 0.1875 |
| Lubrication Fitting Size | 0.188 in |
| Finish | Black Oxide |
| Thread Length [Min] | 1.125 in |
| Crown Radius | 30 |
| Dynamic Radial Rating | 11720 |
| Tolerance Class | P0 Equivalent |
| Roller Diameter - Inch | 2.5 |
| Lubrication Hole Location | Stud Side |
| Roller Width | 1.5 in |
| Hex/Slot | Hex Hole |
| Limiting Speed | 1100 rpm |
| Oil Hole Center | 0.563 in |
| Bearing Type | Needle Bearing |
| Oil Hole Center - Inch | 0.5625 |
| Minimum Thread Length | 1.125 |
| Stud Length | 2.25 in |
| Dynamic Load Rating | 11720 lb |
| Clamping Torque | 2250 in lbf |
| Roller Diameter | 2.5 in |
| Stud Dia. | 1.000 in |
| Material | Bearing Steel |
| Hex Socket - Inch | 0.5 |
| Stud Diameter | 1 in |
| Lubrication Fitting Size - Metric | 0.1875 |
| O.D. Configuration | Crowned |
| Clamping Torque (in lbf) | 2250 |
| Roller Type | Crowned |
| Roller Width - Inch | 1.5 |
| Relubricatable | Yes |
| Roller Dia. | 2.500 in |
| Enclosure | Sealed |
| Platform | CAMROL® |
| Hex Socket | 0.5 in |
| End Type | Hex Hole |
| Roller Shape | Crowned |
| Static Load Rating | 16450 lb |
| Stud Type | Standard Stud |
| Stud Length - Inch | 2.25 |
| Rolling Element | Needle Roller - Full Complement |
| Thread Size | 1-14 |
| Weight | 2.41 LB |
| EAN or UPC | 726166038533 |
| NSN Number | 3110-01-437-8062 |
