SB 22212 W33 SS

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #100764619

Auto Replenish

each One-time purchase

Alternate Products

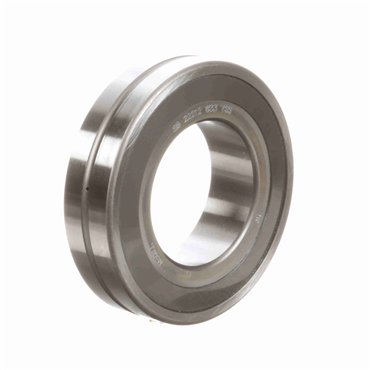

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #100764620

each

Compare

Product Details

Specifications

Dynamic Load Rating	29200 lb
Number of Rows	1
I.D.	60 mm
Full Complement/Caged	Caged
Outer Ring Type	Not Split
Static Load Rating (lb)	30900
Overall Width (in)	1.1024
Platform	Spherol
Overall Width (mm)	28
Duplexing	No
Bore Size - Metric	60
Shaft Shoulder Diameter	2.75 in
Outside Diameter - Metric	110
Speed (Max) Oil	4200
Speed (Max) Grease	2100
Sealed	Sealed - Both Sides
W33 Groove Width	0.172
Maximum Operating Temperature	300
Series	22200
Housing & Shaft Fillet (in)	0.059
Precision Rating	P0 \| ISO 15-2008
Material	52100 Bearing Steel
Enclosure	Sealed On Both Sides
O.D.	110 mm
Dynamic Load Rating (lb)	29200
Lubrication Hole Type	Lubrication Groove & Hole
Housing Shoulder Diameter	3.5 in
Hole Type	Lubrication Groove & Hole
Seal Type	Single Seal
Radial Clearance	Normal
Operating Temperature [Max]	300 °F
Finish	Uncoated
Bore Type	Straight
Static Load Rating	30900 lb
Misalignment	2 Degrees
Cage Material	Steel
Groove Width	0.172
Operating Temperature [Min]	-30 °F
No. of Rows	Single
Rolling Element	Spherical Roller
Angular Misalignment	2 Degrees
Speed [Max] - Grease	2100 rpm
Shaft Fillet	0.059 in
Overall Width	1.102 in, 28 mm
Speed [Max] - Oil	4200 rpm
Weight	2.465 LB
EAN or UPC	726166004545
