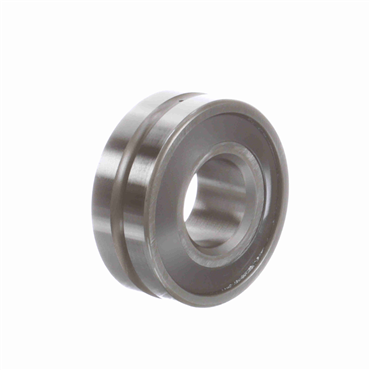

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

SB22204W33YSS

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal
Item #101088727
  • 20 mm Inside Diameter - 47 mm Outside Diameter
  • Straight Bore - Double Seal
  • 52100 Bearing Steel Material - Sealed On Both Sides
  • 0.709 in Overall Width
Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 20 mm Inside Diameter - 47 mm Outside Diameter
  • Straight Bore - Double Seal
  • 52100 Bearing Steel Material - Sealed On Both Sides
  • 0.709 in Overall Width

features

  • 22200 series spherical bearing
  • Single row separated spherical rolling elements
  • Oil hole and annular lubrication groove
  • Lambda® seal on both sides
  • Standard internal clearance
W33 Groove Width 0.125
Speed (Max) Grease 5500
Housing & Shaft Fillet (in) 0.039
Enclosure Sealed On Both Sides
Speed (Max) Oil 11000
Outside Diameter - Metric 47
Overall Width (mm) 18
Dynamic Load Rating (lb) 7000
Housing Shoulder Diameter 1.625 in
Shaft Shoulder Diameter 1 in
O.D. 47 mm
Sealed Sealed - Both Sides
Bore Size - Metric 20
Lubrication Hole Type Lubrication Groove & Hole
Overall Width (in) 0.7087
YS Seal Min. Face Clearance 0.09375
Maximum Operating Temperature 300
Duplexing No
Dynamic Load Rating 7000 lb
Precision Rating P0 | ISO 15-2135
Static Load Rating (lb) 5800
Outer Ring Type Not Split
I.D. 20 mm
Platform Spherol
Full Complement/Caged Caged
Number of Rows 1
Material 52100 Bearing Steel
Series 22200
Operating Temperature [Max] 300 °F
Overall Width 0.709 in, 18 mm
No. of Rows Single
Speed [Max] - Oil 11000 rpm
Shaft Fillet 0.039 in
Hole Type Lubrication Groove & Hole
Cage Material Steel
Seal Type Double Seal
Radial Clearance Normal
Rolling Element Spherical Roller
Speed [Max] - Grease 5500 rpm
Static Load Rating 5800 lb
Operating Temperature [Min] -30 °F
Misalignment 1 Degree
Groove Width 0.125
Finish Uncoated
Angular Misalignment 1 Degree
Bore Type Straight
Weight 0.3 LB
EAN or UPC 726166001155
