SB22207W33S

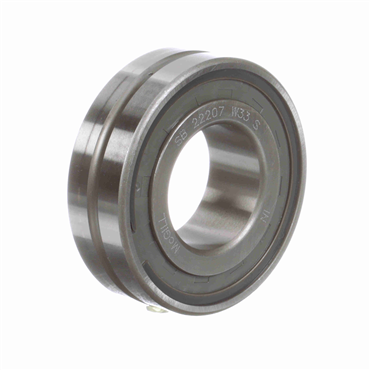

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #101088768

Auto Replenish

each One-time purchase

Alternate Products

McGill SB22207W33YS

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101088772

each

Compare

Product Details

Specifications

Series	22200
I.D.	35 mm
Duplexing	No
Lubrication Hole Type	Lubrication Groove & Hole
Dynamic Load Rating (lb)	15100
Speed (Max) Oil	6800
Bore Size - Metric	35
Material	52100 Bearing Steel
Overall Width (mm)	23
Enclosure	Sealed On One Side
Maximum Operating Temperature	300
Outside Diameter - Metric	72
Platform	Spherol
Speed (Max) Grease	3400
Outer Ring Type	Not Split
Static Load Rating (lb)	14600
Shaft Shoulder Diameter	1.625 in
Precision Rating	P0 \| ISO 15-2083
Housing & Shaft Fillet (in)	0.039
Overall Width (in)	0.9055
Full Complement/Caged	Caged
Housing Shoulder Diameter	2.438 in
O.D.	72 mm
Dynamic Load Rating	15100 lb
W33 Groove Width	0.172
Number of Rows	1
Sealed	Sealed - One Side
Static Load Rating	14600 lb
Rolling Element	Spherical Roller
Finish	Uncoated
Speed [Max] - Oil	6800 rpm
Shaft Fillet	0.039 in
Hole Type	Lubrication Groove & Hole
Angular Misalignment	2 Degrees
Seal Type	Single Seal
Groove Width	0.172
Operating Temperature [Max]	300 °F
Radial Clearance	Normal
No. of Rows	Single
Bore Type	Straight
Operating Temperature [Min]	-30 °F
Overall Width	0.906 in, 23 mm
Cage Material	Steel
Misalignment	2 Degrees
Speed [Max] - Grease	3400 rpm
Weight	0.92 LB
EAN or UPC	726166002114
