SB22208W33SS

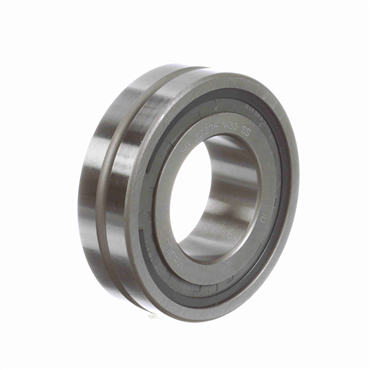

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #100764612

Auto Replenish

each One-time purchase

Alternate Products

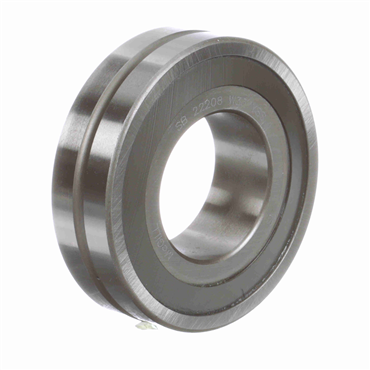

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101088789

each

Compare

Product Details

Specifications

Outer Ring Type	Not Split
Static Load Rating (lb)	16200
Dynamic Load Rating	16800 lb
Speed (Max) Oil	6000
Bore Size - Metric	40
Sealed	Sealed - Both Sides
Number of Rows	1
I.D.	40 mm
Full Complement/Caged	Caged
Precision Rating	P0 \| ISO 15-2127
O.D.	80 mm
Platform	Spherol
Outside Diameter - Metric	80
Enclosure	Sealed On Both Sides
Shaft Shoulder Diameter	1.875 in
Maximum Operating Temperature	300
Housing Shoulder Diameter	2.75 in
W33 Groove Width	0.172
Duplexing	No
Housing & Shaft Fillet (in)	0.039
Series	22200
Lubrication Hole Type	Lubrication Groove & Hole
Overall Width (in)	0.9055
Material	52100 Bearing Steel
Overall Width (mm)	23
Speed (Max) Grease	3000
Dynamic Load Rating (lb)	16800
Speed [Max] - Oil	6000 rpm
Radial Clearance	Normal
Groove Width	0.172
Static Load Rating	16200 lb
Shaft Fillet	0.039 in
Finish	Uncoated
No. of Rows	Single
Operating Temperature [Max]	300 °F
Bore Type	Straight
Operating Temperature [Min]	-30 °F
Angular Misalignment	2 Degrees
Hole Type	Lubrication Groove & Hole
Cage Material	Steel
Misalignment	2 Degrees
Rolling Element	Spherical Roller
Overall Width	0.906 in, 23 mm
Speed [Max] - Grease	3000 rpm
Seal Type	Single Seal
Weight	1.145 LB
EAN or UPC	726166002640
