SB22210W33S

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #101088814

Auto Replenish

each One-time purchase

Alternate Products

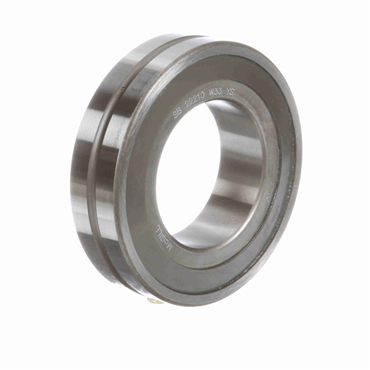

McGill SB22210W33YS

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101088817

each

Compare

Product Details

Specifications

Overall Width (mm)	23
Speed (Max) Grease	2625
Duplexing	No
Housing Shoulder Diameter	3.125 in
Overall Width (in)	0.9055
Shaft Shoulder Diameter	2.25 in
Maximum Operating Temperature	300
Precision Rating	P0 \| ISO 15-2008
Platform	Spherol
Dynamic Load Rating (lb)	18700
Static Load Rating (lb)	19300
W33 Groove Width	0.172
O.D.	90 mm
Series	22200
Dynamic Load Rating	18700 lb
Speed (Max) Oil	5250
I.D.	50 mm
Outer Ring Type	Not Split
Lubrication Hole Type	Lubrication Groove & Hole
Sealed	Sealed - One Side
Housing & Shaft Fillet (in)	0.039
Number of Rows	1
Outside Diameter - Metric	90
Full Complement/Caged	Caged
Enclosure	Sealed On One Side
Material	52100 Bearing Steel
Bore Size - Metric	50
No. of Rows	Single
Overall Width	0.906 in, 23 mm
Shaft Fillet	0.039 in
Operating Temperature [Min]	-30 °F
Static Load Rating	19300 lb
Speed [Max] - Oil	5250 rpm
Speed [Max] - Grease	2625 rpm
Cage Material	Steel
Rolling Element	Spherical Roller
Seal Type	Single Seal
Finish	Uncoated
Bore Type	Straight
Angular Misalignment	2 Degrees
Radial Clearance	Normal
Operating Temperature [Max]	300 °F
Misalignment	2 Degrees
Groove Width	0.172
Hole Type	Lubrication Groove & Hole
Weight	1.295 LB
EAN or UPC	726166003586
