SB22211W33YS

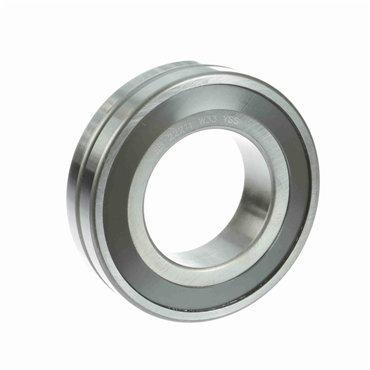

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101088836

Auto Replenish

each One-time purchase

Alternate Products

McGill SB22211W33S

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #101088834

each

Compare

Product Details

Specifications

Dynamic Load Rating	23000 lb
Overall Width (mm)	25
Outer Ring Type	Not Split
YS Seal Min. Face Clearance	0.09375
Maximum Operating Temperature	300
O.D.	100 mm
Series	22200
Housing Shoulder Diameter	3.5 in
I.D.	55 mm
Duplexing	No
Housing & Shaft Fillet (in)	0.059
Speed (Max) Grease	2325
Overall Width (in)	0.9843
Full Complement/Caged	Caged
Outside Diameter - Metric	100
Enclosure	Sealed On One Side
Sealed	Sealed - One Side
Static Load Rating (lb)	23000
Shaft Shoulder Diameter	2.5 in
Platform	Spherol
Speed (Max) Oil	4650
Bore Size - Metric	55
Lubrication Hole Type	Lubrication Groove & Hole
W33 Groove Width	0.172
Number of Rows	1
Material	52100 Bearing Steel
Precision Rating	P0 \| ISO 15-2008
Dynamic Load Rating (lb)	23000
Seal Type	Double Seal
Operating Temperature [Max]	300 °F
Cage Material	Steel
Hole Type	Lubrication Groove & Hole
Radial Clearance	Normal
Finish	Uncoated
Angular Misalignment	1 Degree
Operating Temperature [Min]	-30 °F
Speed [Max] - Oil	4650 rpm
Misalignment	1 Degree
Speed [Max] - Grease	2325 rpm
Bore Type	Straight
Overall Width	0.984 in, 25 mm
No. of Rows	Single
Static Load Rating	23000 lb
Groove Width	0.172
Rolling Element	Spherical Roller
Shaft Fillet	0.059 in
Weight	1.9 LB
EAN or UPC	726166004378
