SB22216W33SS

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #100764625

Auto Replenish

each One-time purchase

Alternate Products

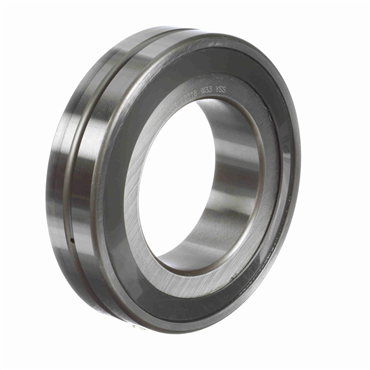

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101088893

each

Compare

Product Details

Specifications

Shaft Shoulder Diameter	3.563 in
Full Complement/Caged	Caged
I.D.	80 mm
Speed (Max) Grease	1625
Housing & Shaft Fillet (in)	0.079
Overall Width (mm)	33
W33 Groove Width	0.219
Lubrication Hole Type	Lubrication Groove & Hole
Static Load Rating (lb)	48600
Dynamic Load Rating	42400 lb
Material	52100 Bearing Steel
Series	22200
Speed (Max) Oil	3250
Maximum Operating Temperature	300
Outer Ring Type	Not Split
O.D.	140 mm
Sealed	Sealed - Both Sides
Enclosure	Sealed On Both Sides
Platform	Spherol
Outside Diameter - Metric	140
Dynamic Load Rating (lb)	42400
Precision Rating	P0 \| ISO 15-2008
Overall Width (in)	1.2992
Housing Shoulder Diameter	5.313 in
Number of Rows	1
Duplexing	No
Bore Size - Metric	80
Overall Width	1.299 in, 33 mm
Seal Type	Single Seal
Radial Clearance	Normal
Rolling Element	Spherical Roller
Static Load Rating	48600 lb
Groove Width	0.219
Bore Type	Straight
Operating Temperature [Min]	-30 °F
Shaft Fillet	0.079 in
Finish	Uncoated
Speed [Max] - Oil	3250 rpm
Angular Misalignment	2 Degrees
Operating Temperature [Max]	300 °F
Speed [Max] - Grease	1625 rpm
No. of Rows	Single
Cage Material	Steel
Hole Type	Lubrication Groove & Hole
Misalignment	2 Degrees
Weight	4.475 LB
EAN or UPC	726166005771
