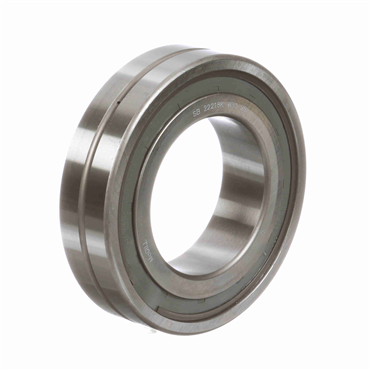

SB22218K W33SS

Spherol® Tapered Bore Radial Spherical Roller Bearing With Single Seal

Item #101088930

Auto Replenish

each One-time purchase

Alternate Products

Spherol® Tapered Bore Radial Spherical Roller Bearing With Double Seal

Item #101088931

each

Compare

Product Details

Specifications

Speed (Max) Grease	1400
Overall Width (in)	1.5748
Dynamic Load Rating	59200 lb
I.D.	90 mm
Number of Rows	1
Shaft Shoulder Diameter	3.938 in
Lubrication Hole Type	Lubrication Groove & Hole
Enclosure	Sealed On Both Sides
Precision Rating	P0 \| ISO 15-2028
O.D.	160 mm
Housing & Shaft Fillet (in)	0.079
Maximum Operating Temperature	300
Sealed	Sealed - Both Sides
Dynamic Load Rating (lb)	59200
W33 Groove Width	0.219
Bore Size - Metric	90
Series	22200
Speed (Max) Oil	2800
Outside Diameter - Metric	160
Full Complement/Caged	Caged
Duplexing	No
Static Load Rating (lb)	69300
Platform	Spherol
Housing Shoulder Diameter	6.063 in
Overall Width (mm)	40
Outer Ring Type	Not Split
Material	52100 Bearing Steel
Operating Temperature [Max]	300 °F
No. of Rows	Single
Operating Temperature [Min]	-30 °F
Finish	Uncoated
Shaft Fillet	0.079 in
Static Load Rating	69300 lb
Speed [Max] - Oil	2800 rpm
Hole Type	Lubrication Groove & Hole
Misalignment	2 Degrees
Angular Misalignment	2 Degrees
Seal Type	Single Seal
Cage Material	Steel
Groove Width	0.219
Rolling Element	Spherical Roller
Radial Clearance	Normal
Bore Type	Tapered
Speed [Max] - Grease	1400 rpm
Overall Width	1.575 in, 40 mm
Weight	7.5 LB
EAN or UPC	726166006624
