SB22220K W33SS

Spherol® Tapered Bore Radial Spherical Roller Bearing With Single Seal

Item #101088962

Auto Replenish

each One-time purchase

Alternate Products

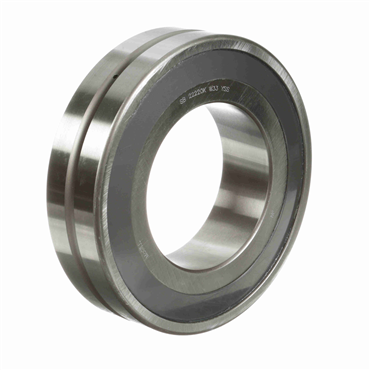

Spherol® Tapered Bore Radial Spherical Roller Bearing With Double Seal

Item #101088964

each

Compare

Product Details

Specifications

I.D.	100 mm
Duplexing	No
Precision Rating	P0 \| ISO 15-2008
Static Load Rating (lb)	92600
O.D.	180 mm
Shaft Shoulder Diameter	4.438 in
Speed (Max) Oil	2500
Sealed	Sealed - Both Sides
Bore Size - Metric	100
Number of Rows	1
Lubrication Hole Type	Lubrication Groove & Hole
Full Complement/Caged	Caged
Series	22200
Platform	Spherol
Overall Width (in)	1.811
Speed (Max) Grease	1250
Overall Width (mm)	46
Outer Ring Type	Not Split
Housing Shoulder Diameter	6.375 in
Enclosure	Sealed On Both Sides
Housing & Shaft Fillet (in)	0.079
Material	52100 Bearing Steel
Outside Diameter - Metric	180
Dynamic Load Rating	77700 lb
W33 Groove Width	0.328
Maximum Operating Temperature	300
Dynamic Load Rating (lb)	77700
Hole Type	Lubrication Groove & Hole
Operating Temperature [Max]	300 °F
Static Load Rating	92600 lb
Angular Misalignment	2 Degrees
Misalignment	2 Degrees
Groove Width	0.328
Shaft Fillet	0.079 in
Radial Clearance	Normal
No. of Rows	Single
Bore Type	Tapered
Speed [Max] - Oil	2500 rpm
Overall Width	1.811 in, 46 mm
Seal Type	Single Seal
Finish	Uncoated
Cage Material	Steel
Operating Temperature [Min]	-30 °F
Rolling Element	Spherical Roller
Speed [Max] - Grease	1250 rpm
Weight	11.1 LB
EAN or UPC	726166007324
