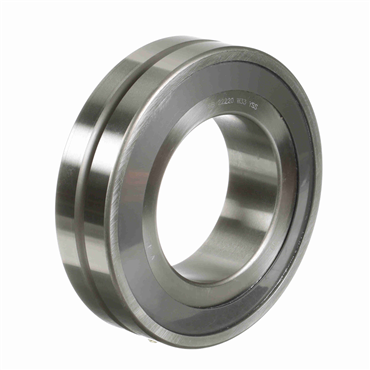

SB22220W33SS

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #101088950

Auto Replenish

each One-time purchase

Alternate Products

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101088953

each

Compare

Product Details

Specifications

Speed (Max) Grease	1250
Duplexing	No
Full Complement/Caged	Caged
Dynamic Load Rating	77700 lb
Outside Diameter - Metric	180
Housing Shoulder Diameter	6.063 in
Outer Ring Type	Not Split
Overall Width (mm)	46
Speed (Max) Oil	2500
Housing & Shaft Fillet (in)	0.079
Enclosure	Sealed On Both Sides
O.D.	180 mm
Sealed	Sealed - Both Sides
Number of Rows	1
Bore Size - Metric	100
Series	22200
Material	52100 Bearing Steel
Dynamic Load Rating (lb)	77700
W33 Groove Width	0.328
Shaft Shoulder Diameter	4.438 in
Platform	Spherol
Precision Rating	P0 \| ISO 15-2075
Static Load Rating (lb)	92600
Maximum Operating Temperature	300
Lubrication Hole Type	Lubrication Groove & Hole
I.D.	100 mm
Overall Width (in)	1.811
Seal Type	Single Seal
Shaft Fillet	0.079 in
Hole Type	Lubrication Groove & Hole
Rolling Element	Spherical Roller
Angular Misalignment	2 Degrees
Finish	Uncoated
Misalignment	2 Degrees
Groove Width	0.328
Static Load Rating	92600 lb
Cage Material	Steel
Operating Temperature [Max]	300 °F
Radial Clearance	Normal
Speed [Max] - Oil	2500 rpm
Bore Type	Straight
Operating Temperature [Min]	-30 °F
Overall Width	1.811 in, 46 mm
No. of Rows	Single
Speed [Max] - Grease	1250 rpm
Weight	11.1 LB
EAN or UPC	726166007096
