SB22224W33SS

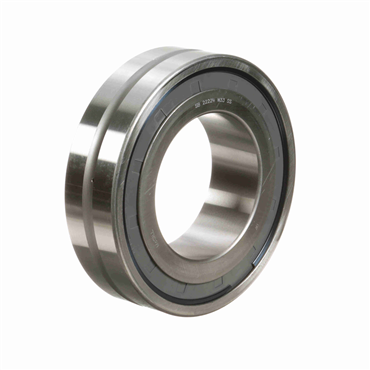

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #101088992

Auto Replenish

each One-time purchase

Alternate Products

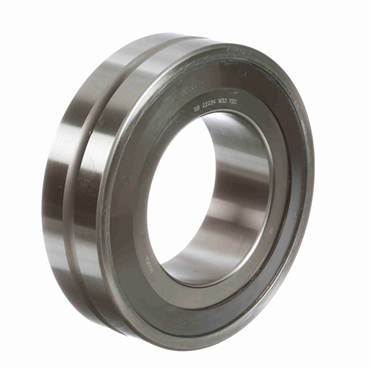

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101088993

each

Compare

Product Details

Specifications

Duplexing	No
Material	52100 Bearing Steel
Sealed	Sealed - Both Sides
Bore Size - Metric	120
Dynamic Load Rating (lb)	120000
Platform	Spherol
Shaft Shoulder Diameter	5.313 in
Housing Shoulder Diameter	8.313 in
W33 Groove Width	0.438
Dynamic Load Rating	120000 lb
I.D.	120 mm
O.D.	215 mm
Outer Ring Type	Not Split
Housing & Shaft Fillet (in)	0.079
Lubrication Hole Type	Lubrication Groove & Hole
Speed (Max) Grease	1025
Static Load Rating (lb)	147000
Precision Rating	P0 \| ISO 15-2008
Maximum Operating Temperature	300
Number of Rows	1
Overall Width (in)	2.2835
Outside Diameter - Metric	215
Series	22200
Speed (Max) Oil	2050
Overall Width (mm)	58
Full Complement/Caged	Caged
Enclosure	Sealed On Both Sides
Cage Material	Steel
Groove Width	0.438
Seal Type	Single Seal
Overall Width	2.284 in, 58 mm
Misalignment	2 Degrees
Static Load Rating	147000 lb
No. of Rows	Single
Rolling Element	Spherical Roller
Bore Type	Straight
Operating Temperature [Min]	-30 °F
Shaft Fillet	0.079 in
Hole Type	Lubrication Groove & Hole
Finish	Uncoated
Speed [Max] - Grease	1025 rpm
Angular Misalignment	2 Degrees
Operating Temperature [Max]	300 °F
Speed [Max] - Oil	2050 rpm
Radial Clearance	Normal
Weight	19.8 LB
EAN or UPC	726166008246
