SB22314W33SS

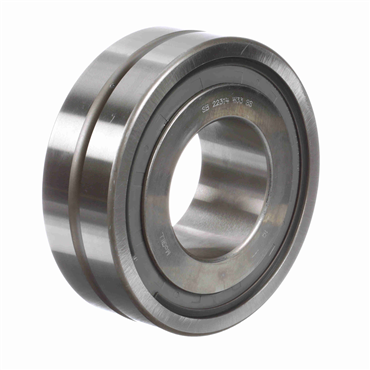

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #101089093

Auto Replenish

each One-time purchase

Alternate Products

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101089097

each

Compare

Product Details

Specifications

I.D.	70 mm
Enclosure	Sealed On Both Sides
Bore Size - Metric	70
Lubrication Hole Type	Lubrication Groove & Hole
O.D.	150 mm
Overall Width (in)	2.0079
W33 Groove Width	0.328
Number of Rows	1
Shaft Shoulder Diameter	3.25 in
Platform	Spherol
Overall Width (mm)	51
Precision Rating	P0 \| ISO 15-2067
Maximum Operating Temperature	300
Housing & Shaft Fillet (in)	0.079
Static Load Rating (lb)	72500
Housing Shoulder Diameter	5.375 in
Outer Ring Type	Not Split
Duplexing	No
Dynamic Load Rating (lb)	68400
Sealed	Sealed - Both Sides
Speed (Max) Grease	1500
Series	22300
Dynamic Load Rating	68400 lb
Outside Diameter - Metric	150
Material	52100 Bearing Steel
Speed (Max) Oil	3000
Full Complement/Caged	Caged
Operating Temperature [Max]	300 °F
Speed [Max] - Oil	3000 rpm
Cage Material	Steel
Shaft Fillet	0.079 in
Misalignment	2 Degrees
Speed [Max] - Grease	1500 rpm
Angular Misalignment	2 Degrees
Seal Type	Single Seal
Bore Type	Straight
No. of Rows	Single
Radial Clearance	Normal
Overall Width	2.008 in, 51 mm
Rolling Element	Spherical Roller
Finish	Uncoated
Hole Type	Lubrication Groove & Hole
Operating Temperature [Min]	-30 °F
Groove Width	0.328
Static Load Rating	72500 lb
Weight	9.405 LB
EAN or UPC	726166011116
