40SS CONN LK SC SF

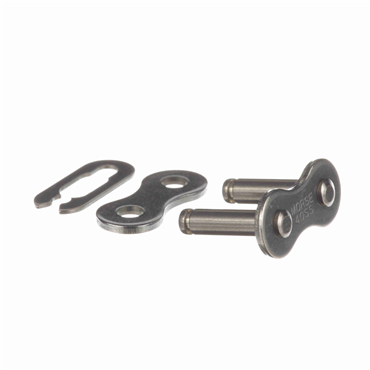

Stainless Steel Roller Chain Link

Item #102069776
each
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities

Alternate Products

Product details

  • #40
  • 1 Strand
  • Stainless Steel
  • Spring Clip Connecting (Master) Link
  • 1/2" Pitch

compliances

  • 0

Specifications

Material Stainless Steel
Roller Width 0.312 in
Pin Overall Length 0.63 in
Rated Working Load 370 lbs
Duty Standard-Duty
No. of Strands Across 1
Pin Material Stainless Steel
Chain Series 40, 40-2, 40-3, 40-4
Pin Diameter 0.156 in
Chain Pitch 0.5 in
Link Plates Thickness 0.06 in
Chain No. 40
Link Plates Height 0.47 in
Link Type Spring Clip, Slip Fit
Chain Type ANSI
Roller Dia. 0.313 in
Chain Construction Part (CL, Ol, RL)
Pin Length (Lc) 0.32 in
Type Connecting (Master) Link
Pin Length (Lr) 0.38 in
Weight 0.445 LB
EAN or UPC 662288801566
