36-GC5310-02

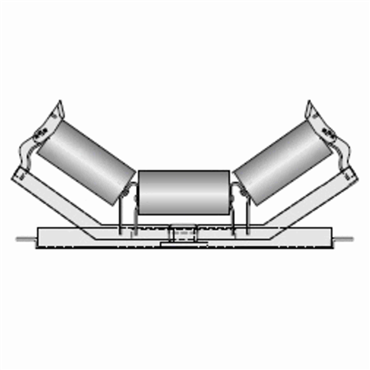

CEMA C 35° Equal Trougher Training, Actuating Shoe

Item #101495443

Auto Replenish

each One-time purchase

Product Details

Specifications

Mounting Pad Thickness	0.25 in
Roller Dia.	5 in
Roller Length	13 in
Belt Width	36 in
Material	Steel
Roller Material	Steel
Trough Angle [Nom]	35 °
Bolt Spacing Center to Center	7.5 in
Lubrication	Factory Sealed
Length of Idler Belt Width	47 in
Roller Span	36.1875 in
CEMA Class	CEMA Class C - Medium Duty
Bolt Hole Spacing - Width	7.5 in
Width of Bolt Spacing [Max]	8 5/8 in
Center Roll Height	9.3125 in
Width of Bolt Spacing [Min]	5 3/4 in
Bolt Hole Spacing - Length	45 in
Bearing Type	Tapered Roller Bearing
Bolt Spacing Center to Center [Min]	5.75 in
Overall Height	18.125 in
Center Rolls Shell Length	13 in
Lubricant Type	Factory Sealed
Series	Rex Classic
Installed Options	None
Roll Type	Three Rolls, Equal Length
Idler Type	Actuating Shoe, Equal Trougher Training
Bracket Length	47 in
Bolt Spacing Center to Center [Max]	8.62 in
Bracket Width	10 in
Weight	147.0 LB
EAN or UPC	698210834470
