42-GC5051-02

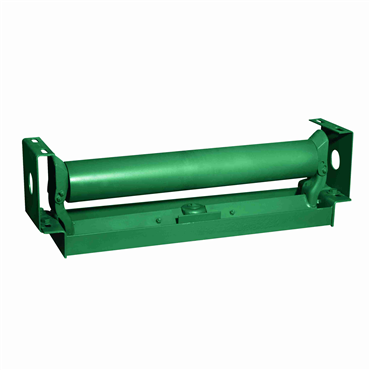

CEMA C Return Training, Actuating Shoe

Item #100844147

Auto Replenish

each One-time purchase

Product Details

Specifications

Mounting Pad Thickness	0.18 in
Installed Options	None
Roller Dia.	5 in
Overall Base Length	10 in
Width of Bolt Spacing [Min]	3 3/4 in
Roller Material	Steel
Bolt Spacing Center to Center [Min]	6.25 in
Bracket Length	53 1/2 in
Trough Angle [Nom]	0 °
Bearing Type	Tapered Roller Bearing
Lubrication	Factory Sealed
Series	Rex Classic
Width of Bolt Spacing [Max]	6 1/4 in
Length of Idler Belt Width	53.5 in
Roll Type	Single Roll, Round
Center Rolls Shell Length	45 in
Belt Width	42 in
Bolt Spacing Center to Center [Max]	5 in
Material	Steel
Bolt Spacing Center to Center	3.75 in
Idler Type	Actuating Shoe, Return Training
Bracket Width	14 1/2 in
Lubricant Type	Factory Sealed
Bolt Hole Spacing - Length	51 in
CEMA Class	CEMA Class C - Medium Duty
Bolt Hole Spacing - Width	5 in
Roller Length	45 in
Weight	152.0 LB
EAN or UPC	698210833145
