Mat Type

LF5936 36

Mat Type
Item #101618287
  • 5936 Series Chain
  • Straight Running, Perf Top
  • Low Friction Acetal Material
  • 3/4" Pitch
  • 36" Width
  • 16.4 % Open Area
+ Show More + Show Less
Mat Type
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Prop 65Prop 65
  • 5936 Series Chain
  • Straight Running, Perf Top
  • Low Friction Acetal Material
  • 3/4" Pitch
  • 36" Width

description

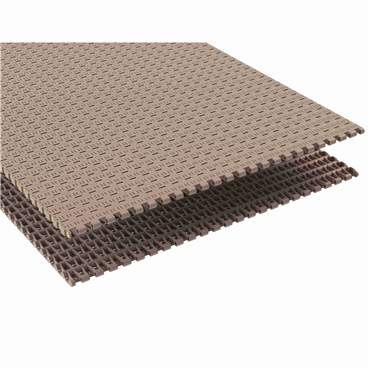

  • Rex® MatTop® chains provide a continuous conveying surface for applications demanding greater width requirements (available in both assembled-to-width and molded-to-width configurations). Pins extend the full width of the chain, ensuring maximum strength and providing smoother conveying surfaces. Smaller pitch chains minimize the size of dead plates when transferring products over head or tail shafts reducing chordal action which helps eliminate container tipping and jam-ups at transfer points. Engineered to satisfy a wide range of conveyor applications for virtually any product size.
Chain Strength 900 lbs/ft, 13131 Nm
Chain Pitch 0.75 in, 19.05 mm
Package Type 10 Foot Box
Support Area Percent 83.6 %
Material Low Friction Acetal
Curve Retention Straight
Open Area 0.164 %
High Temperatures No
Chain Width 36 in, 914.4 mm
Type Straight Running, Perf Top
Chain Number 5936
Thickness 0.34375 in
Color Dark Tan
Rod Material Polypropylene
Low Friction Yes
Series Straight Running
Straight or Side-Flex Straight Running
Surface Type Flush Grid
Module Width 36 in
Chain Material LF
Chain Series 5936
Pin Material Polypropylene
Link Plates Thickness 11/32 in
Weight 3.9 LB
EAN or UPC 793699348040
