MAS6315F

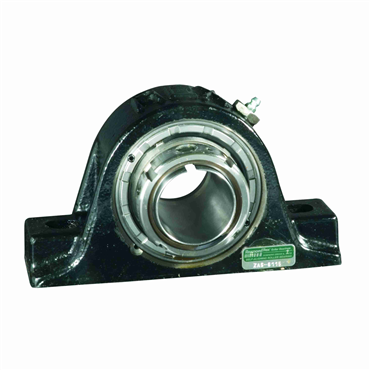

Cast Iron Shurlok Tapered Adapter Spherical Roller Solid-Housed Pillow Block

Item #101555827

Auto Replenish

each One-time purchase

Product Details

Specifications

Length Through Bore	5.78 mm
Bolt Hole Spacing	12 1/2 in
Inch/Metric	Inch
Handle / Housing Material	Cast Iron
Locking Device	Shurlok Adapter Mounted
Housing Material	Cast Iron
Base Width	4 1/2 in
Static Load Rating	137000 lb
Primary Seal	Buna Spring Loaded Lip Seal
Series	6000
Vibration Frequency Roller Spin	0.0548 cps
Collar O.D.	5 43/64 in
Shaft Dia.	3.9375 in
Flange Type	4-Bolt Flange
Temperature Range [Max]	225 °F
Size Code	11
Vibration Frequency Outer Ring Defect	0.1283 cps
Mounted Clearance	C3 Standard
Mounted Unit Duty	Heavy-Duty
Base Length	15 1/4 in
Bolt Hole Spacing - Width	2.25 in
Bolt Size	3/4 in
Lubrication	Exxon Ronex MP
Vibration Frequency Fundamental Train	0.0071 cps
End Type	Open End
Bolt Holes	4
Volume	0.116 Hectoliter
Radial Dynamic Load Capacity	130970 lb
Lubrication Type	Exxon Ronex MP Std
Housing Construction	1 Piece
Seal Type	Heavy Contact Seals, Spring Loaded Heavy Contact Seals
Center Line to Base Dimension [Min]	4 1/4 in
Shaft Locking	Shurlok Tapered Adapter
Housing Coating	Powder Coated
Pillow Block Type	Thru-Bolt
Vibration Frequency Inner Ring Defect	0.1717 cps
Housing Height	8 1/2 in
Base Height	2 5/8 in
Grease Fitting Size	1/8 NPT
RPM [Max]	1200 rpm
Bearing Design	Expansion
Bearing Type	Spherical Roller
Retainer Type	Engineered Polymer
Bolt Hole Length	1 1/4 in
Weight	61.0 LB
EAN or UPC	793699904147
