MF5415R48

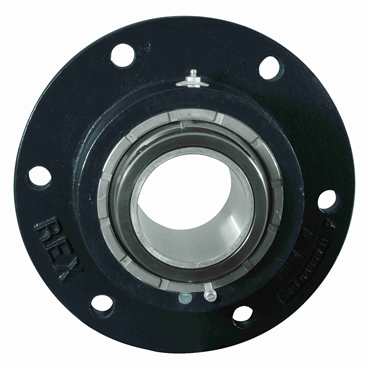

Cast Iron 4 15/16 in Shaft Dia Double Set Collar Spherical Roller Flange Block

Item #103243036

Auto Replenish

each One-time purchase

Product Details

Specifications

Mounted Clearance	C3 Standard
Seal Type	Spring Loaded Heavy Contact Seals
Shaft Locking	Double Set Collar
Microlock Kit	ML4
Temperature [Max]	225 °F
Setscrew Torque	1350 in-lbs
Bearing Type	Spherical Roller
Radial Dynamic Load Capacity	191500 lb
Lubrication Type	Exxon Ronex MP Std
Shape	Round
Lubrication	Relubricatable
Vibration Frequency Inner Ring Defect	0.1730 cps
Bearing Housing	Flg Blk 6 Blt Rnd Type ZF
Vibration Frequency Fundamental Train	0.0071 cps
Locking Device	Double Setscrew Locking Collars
Vibration Frequency Outer Ring Defect	0.1270 cps
Flange Type	6-Bolt Flange
Grease Fitting Size	1/4 NPT
Bearing Design	Non-Expansion
Housing Coating	Powder Coated
Bore Range [Max]	5 in
Distance Between Bolt Holes	7 in
Threaded Cover Kit	TC13
Mounting Bolt Size	1 1/8 in
Locking Collar O.D.	7 1/16 in
Bolt Circle Radius	7 in
Housing Material	Cast Iron
Static Load Rating	241900 lb
Vibration Frequency Roller Spin	0.0515 cps
Bore Length	7 7/8 in
Series	5000
Seal Kit	MS13
Inch/Metric	Inch
Mounted Unit Duty	Heavy Duty
Size Code	13
Retainer Type	Engineered Polymer
Shaft Dia.	4.9375 in
Bore Range [Min]	1.4375 in
Primary Seal	Buna Spring Loaded Lip Seal
Mounting Pad Height	1 1/2 in
RPM [Max]	1000 rpm
Weight	159.0 LB
EAN or UPC	698210011703
