ZA2215

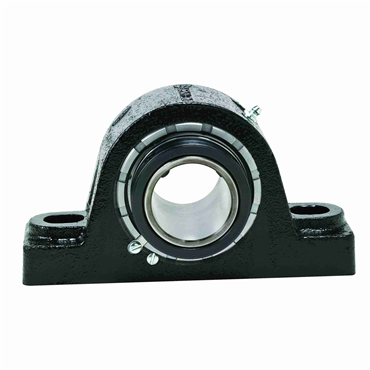

Cast Iron Single Set Collar Spherical Roller Solid-Housed Pillow Block

Item #100739102

Auto Replenish

each One-time purchase

Product Details

Easy bearing clearance: can be field adjusted to meet application needs
Shaft ready: prelubricated with standard grease for normal operation
other lubricants available for special conditions
Fully self-aligning: spherical roller bearing to accommodate operational and installation misalignment
Carburized raceways: case-carburized inner races provide a hard, fatigue-resistant surface and a tough, crack-resistant ductile core
For extra protection under severe conditions, auxiliary caps are also available

Specifications

Mounted Clearance	C3 Standard
Size Code	9
Series	2000
Housing Coating	Powder Coated
Temperature Range [Max]	200 °F 225 °F
Base Length	10 7/16 in
Bolt Hole Length	1 1/8 in
Bolt Holes	2
RPM [Max]	2800 rpm
Base Height	2 in
Threaded Cover Kit	TC9
Inch/Metric	Inch
Flange Type	2-Bolt Flange
Lubrication Type	Exxon Ronex MP Std
Radial Dynamic Load Capacity	57750 lb
Shaft Dia.	2.9375 in
Retainer Type	Engineered Polymer
Mounted Unit Duty	Normal-Duty
Housing Construction	1 Piece
Temperature Range [Min]	-20 °F
Bolt Hole Spacing	8 1/8 in
Length Through Bore	4 in
Lubrication	Exxon Ronex MP
Locking Device	Single Setscrew Locking Collar
Vibration Frequency Outer Ring Defect	0.1299 cps
Bearing Type	Spherical Roller
End Type	Open End
Housing Height	6 7/16 in
Grease Fitting Size	1/8 NPT
Vibration Frequency Inner Ring Defect	0.1701 cps
Bolt Size	3/4 in
Primary Seal	Steel Clearance Seal
Handle / Housing Material	Cast Iron
Collar Extension	13/16 in
Base Width	3 3/16 in
Pillow Block Type	Thru-Bolt
Seal Type	Clearance Seals
Insert Type	Steel Insert
Shaft Locking	Single Set Collar
Volume	1.548 GLL
Bearing Design	Fixed
Static Load Rating	71500 lb
Vibration Frequency Roller Spin	0.0591 cps
Housing Material	Cast Iron
Center Line to Base Dimension [Min]	3 1/4 in
Bolt Hole Size	1 1/8 in
Vibration Frequency Fundamental Train	0.0072 cps
Weight	26.18 LB
EAN or UPC	698210160906
