ZAS2315F

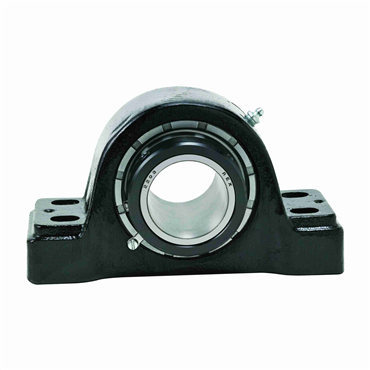

Solid Pillow Block

Item #101158758

Auto Replenish

each One-time purchase

Product Details

Easy bearing clearance: can be field adjusted to meet application needs
Mounting to suit the load and installation requirements
Shaft ready: prelubricated with standard grease for normal operation
other lubricants available for special conditions
Fully self-aligning: spherical roller bearing to accommodate operational and installation misalignment
Rugged housing: standard material – cast iron, steel or ductile iron available on request
Carburized raceways: case-carburized inner races provide a hard, fatigue-resistant surface and a tough, crack-resistant ductile core
Interchangeable seals: three types of seals to match the application requirements: Z seal, for the broad range of normal operating conditions
K seal, for dusty, dirty conditions
and M seal, for protection against liquid contamination
For extra protection under severe conditions, auxiliary caps are also available

Specifications

Bolt Hole Spacing	12 1/2 in
Flange Type	4-Bolt Flange
Base Height	2 5/8 in
Insert Type	Steel Insert
Shaft Locking	Single Set Collar
Static Load Rating	137000 lb
Vibration Frequency Inner Ring Defect	0.1717 cps
Bearing Design	Expansion
Bolt Hole Spacing - Width	2.25 in
Temperature Range [Min]	-20 °F
Bolt Hole Length	1 1/4 in
Lubrication	Exxon Ronex MP
Mounted Unit Duty	Normal-Duty
Housing Construction	1 Piece
Series	2000
Inch/Metric	Inch
Pillow Block Type	Thru-Bolt
Base Length	15 1/4 in
RPM [Max]	2050 rpm
Housing Material	Cast Iron
Length Through Bore	5.0625 in
End Type	Open End
Bolt Hole Size	1 1/4 in
Temperature Range [Max]	200 °F, 225 °F
Vibration Frequency Roller Spin	0.0548 cps
Base Width	4 1/2 in
Collar Extension	1 1/16 in
Bearing Type	Spherical Roller
Radial Dynamic Load Capacity	130970 lb
Retainer Type	Engineered Polymer
Locking Device	Single Setscrew Locking Collar
Lubrication Type	Exxon Ronex MP Std
Bolt Size	3/4 in
Seal Type	Clearance Seals
Bolt Holes	4
Size Code	11
Housing Height	8 1/2 in
Grease Fitting Size	1/8 NPT
Shaft Dia.	3.9375 in
Vibration Frequency Outer Ring Defect	0.1283 cps
Vibration Frequency Fundamental Train	0.0071 cps
Primary Seal	Steel Clearance Seal
Center Line to Base Dimension [Min]	4 1/4 in
Handle / Housing Material	Cast Iron
Weight	61.0 LB
EAN or UPC	698210695705
