ZAS3307

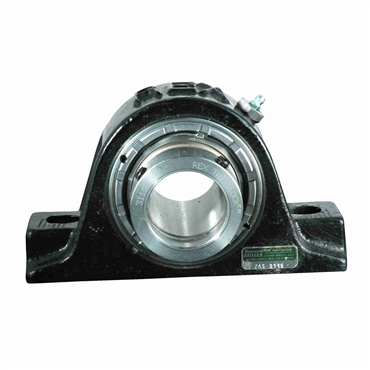

Solid Pillow Block

Item #101158780

Auto Replenish

each One-time purchase

Product Details

Specifications

Housing Height	7 1/2 in
Center Line to Base Dimension [Min]	3 3/4 in
Insert Type	Steel Insert
Vibration Frequency Fundamental Train	0.0073 cps
Bolt Hole Length	1 5/8 in
Bolt Hole Spacing	10 in
Grease Fitting Size	1/8 NPT
Base Length	13 in
Mounted Unit Duty	Medium-Duty
Bolt Holes	2
Temperature Range [Max]	200 °F, 225 °F
Flange Type	2-Bolt Flange
End Type	Open End
Handle / Housing Material	Cast Iron
Primary Seal	Steel Clearance Seal
Shaft Dia.	3.4375 in
Lubrication Type	Exxon Ronex MP Std
Locking Device	Eccentric Cam Locking Collar
Lubrication	Exxon Ronex MP
Radial Dynamic Load Capacity	84330 lb
Length Through Bore	4.5625 in
Vibration Frequency Roller Spin	0.0628 cps
RPM [Max]	2400 rpm
Housing Material	Cast Iron
Temperature Range [Min]	-20 °F
Retainer Type	Engineered Polymer
Series	3000
Static Load Rating	90700 lb
Bearing Type	Spherical Roller
Size Code	10
Seal Type	Clearance Seals
Base Height	2 1/4 in
Shaft Locking	Eccentric Locking Collar
Vibration Frequency Inner Ring Defect	0.1784 cps
Pillow Block Type	Thru-Bolt
Inch/Metric	Inch
Vibration Frequency Outer Ring Defect	0.1383 cps
Bolt Size	7/8 in
Base Width	3 7/16 in
Housing Construction	1 Piece
Bearing Design	Expansion
Weight	40.3 LB
EAN or UPC	698210907495
