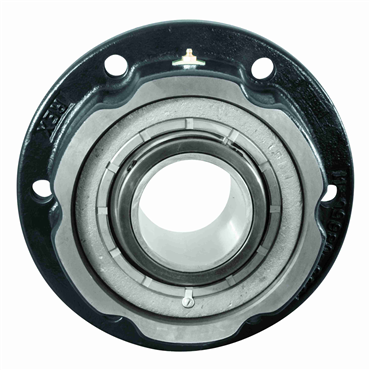

Cast Iron 4 15/16 in Shaft Dia Double Set Collar Spherical Roller Flange Block

Rexnord Corp.

ZFS5415

Cast Iron 4 15/16 in Shaft Dia Double Set Collar Spherical Roller Flange Block

Item #101159820

Cast Iron Housing Material
Double Set Collar Shaft Locking

Auto Replenish

each One-time purchase

Prop 65

Product Details

Cast Iron Housing Material
Double Set Collar Shaft Locking

Specifications

Seal Type	Clearance Seals
Bore Range [Max]	5 in
Shaft Dia.	4.9375 in
Retainer Type	Engineered Polymer
Bearing Type	Spherical Roller
Bolt Circle Dia.	14 in
Lubricant Type	Exxon Ronex MP
Size Code	13
Housing Length	16 1/2 in
Shape	Round
Temperature [Max]	225 °F
Housing Diameter	12 9/16 in
End Type	Open End
Shaft Locking	Double Set Collar
Vibration Frequency Roller Spin	0.0515 cps
Volume	0.451 Hectoliter
Mounting Bolt Size	1 in
Bearing Housing	Flg Blk 6 Blt Rnd Type ZF
Housing Material	Cast Iron
Collar O.D.	7 1/16 in
Lubrication	Relubricatable
Bore Range [Min]	1.4375 in
Locking Collar O.D.	7 1/16 in
Bearing Design	Expansion
RPM [Max]	1600 rpm
Radial Dynamic Load Capacity	191500 lb
Housing Construction	One Piece
Inch/Metric	Inch
Bolt Circle Radius	7 in
Microlock Kit	ML4
Vibration Frequency Fundamental Train	0.0071 cps
Flange Thickness	1 1/2 in
Vibration Frequency Inner Ring Defect	0.1730 cps
Duty	Heavy-Duty
Bolt Size	1 in
Set Screw Torque	1350 in lb
Mounted Unit Duty	Heavy Duty
Distance Between Bolt Holes	7 in
Primary Seal	Steel Clearance Seal
Mounted Clearance	C3 Standard
Lubrication Type	Exxon Ronex MP Std
Bore Length	7 7/8 in
Mounting Pad Height	1 1/2 in
Style	6-Bolt Flange
Setscrew Torque	1350 in-lbs
Series	5000
Length Through Bore	7.875 in
Threaded Cover Kit	TC13
Bolt Hole Spacing	7 in
Seal Kit	ZS13
Flange Type	6-Bolt Flange
Temperature Range [Max]	225 °F
Housing Coating	Powder Coated
Static Load Rating	241900 lb
Misalignment Range	±1 1/2°
Locking Device	Double Setscrew Locking Collars
Grease Fitting Size	1/4 NPT
Vibration Frequency Outer Ring Defect	0.1270 cps
Weight	198.0 LB
EAN or UPC	698210831059
