ZT105307

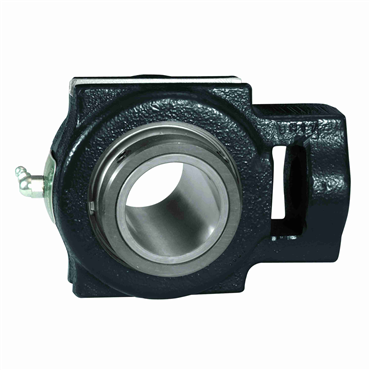

ZT 5000 Series Heavy-Duty Take-Up Block

Item #101488052

Regreasable

Non-Expansion

Double Setscrew Locking

+ Show More

Auto Replenish

each One-time purchase

Product Details

Easy bearing clearance: can be field adjusted to meet application needs
Mounting to suit the load and installation requirements
Shaft ready: prelubricated with standard grease for normal operation
other lubricants available for special conditions
Fully self-aligning: spherical roller bearing to accommodate operational and installation misalignment
Rugged housing: standard material – cast iron, steel or ductile iron available on request
Carburized raceways: case-carburized inner races provide a hard, fatigue-resistant surface and a tough, crack-resistant ductile core
Interchangeable seals: three types of seals to match the application requirements: Z seal, for the broad range of normal operating conditions
K seal, for dusty, dirty conditions
and M seal, for protection against liquid contamination
For extra protection under severe conditions, auxiliary caps are also available

Specifications

Overall Height	7.8125 in
Inch/Metric	Inch
Seal Type	Clearance Seals
Shaft Dia.	3 7/16 in
Length Through Bore	5.3125 in
Retainer Type	Engineered Polymer
Vibration Frequency Roller Spin	0.0628 cps
Type	Spherical Roller Bearing
Size Code	10
Temperature Range [Max]	225 °F
Locking Device	Double Setscrew Locking Collars
Bearing Type	Spherical Roller
Between Frame Width	6 13/16 in
Radial Dynamic Load Capacity	84330 lb
Vibration Frequency Fundamental Train	0.0073 cps
Overall Width	5 5/16 in
Bearing Design	Non-Expansion
Grease Fitting Size	1/8 NPT
Screw Diameter	1 7/8 in
Primary Seal	Steel Clearance Seal
Slot Width	1.8125 in
Shank Height	5 3/8 in
Slot Length	N/A
Vibration Frequency Outer Ring Defect	0.1383 cps
Lubrication	Relubricatable
Overall Height [Min]	7.8125 in
Shaft Locking	Double Set Collar
Vibration Frequency Inner Ring Defect	0.1784 cps
Static Load Rating	90700 lb
Housing Width	3 7/16 in
Overall Length	10 in
Lubrication Type	Exxon Ronex MP Std
Housing Coating	Powder Coated
Housing Material	Cast Iron
Weight	42.0 LB
EAN or UPC	698210645656
