ZT62200

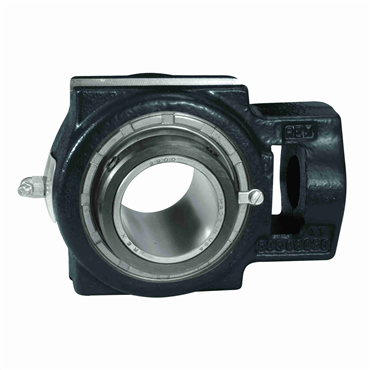

ZT 2000 Series Normal-Duty Take-Up Block

Item #101161080

Regreasable

Non-Expansion

Setscrew Locking Collar

+ Show More

Auto Replenish

each One-time purchase

Product Details

Easy bearing clearance: can be field adjusted to meet application needs
Mounting to suit the load and installation requirements
Shaft ready: prelubricated with standard grease for normal operation
other lubricants available for special conditions
Fully self-aligning: spherical roller bearing to accommodate operational and installation misalignment
Rugged housing: standard material – cast iron, steel or ductile iron available on request
Carburized raceways: case-carburized inner races provide a hard, fatigue-resistant surface and a tough, crack-resistant ductile core
Interchangeable seals: three types of seals to match the application requirements: Z seal, for the broad range of normal operating conditions
K seal, for dusty, dirty conditions
and M seal, for protection against liquid contamination
For extra protection under severe conditions, auxiliary caps are also available

Specifications

Lubrication Type	Exxon Ronex MP Std
Screw Diameter	1 1/8 in
Housing Material	Cast Iron
Bearing Design	Non-Expansion
Size Code	6
Lubrication	Relubricatable
Grease Fitting Size	1/8 NPT
Retainer Type	Engineered Polymer
Locking Device	Setscrew Locking Collar
Overall Width	3 1/8 in
Vibration Frequency Roller Spin	0.0559 cps
Shaft Locking	Single Set Collar
Inch/Metric	Inch
Type	Spherical Roller Bearing
Vibration Frequency Fundamental Train	0.0072 cps
Slot Length	N/A
Shaft Dia.	2 in
Temperature Range [Max]	225 °F
Radial Dynamic Load Capacity	28890 lb
Vibration Frequency Outer Ring Defect	0.1217 cps
Housing Width	1 3/4 in
Overall Height [Min]	4.5 in
Seal Type	Clearance Seals
Bearing Type	Spherical Roller
Shank Height	3 5/16 in
Slot Width	0.6875 in
Housing Coating	Powder Coated
Overall Height	4.5 in
Between Frame Width	4 in
Static Load Rating	33200 lb
Vibration Frequency Inner Ring Defect	0.1617 cps
Overall Length	6.1875 in
Length Through Bore	3.125 in
Primary Seal	Steel Clearance Seal
Weight	9.9 LB
EAN or UPC	698210594237
