AR5

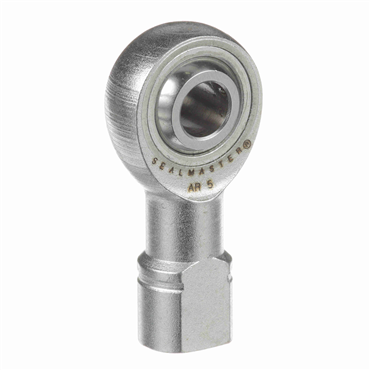

Precision Right Hand Thread 3 pc Rod End Carbon Steel Race Female Rod End

Item #101182492

Auto Replenish

each One-time purchase

Alternate Products

Aurora Bearing Co. AW-5

AW Series High Strength Female Rod End

Item #101890747

each

Compare

Product Details

Three-piece construction offers flexibility for alternative race materials designed to solve specific application problems.

Catalog load ratings are not applicable when grease fittings are specified because of the reduced cross section of the head

Specifications

Lubrication	Non-Relubricatable
Construction	Three-Piece Rod End
Length Through Bore	0.4375 in
Ambient Temperature Range [Max]	350 °F
Grade	Precision
Bearing Type	Rod End
Misalignment Range	±7°
Thread Length	0.719 in
Thread Size	5/16-24
Angle of Misalignment	±7°
Base Dia.	0.531 in
Lubrication Type	Grease
Length to Center of Ball	1.375 in
Static Radial Load [Max]	7500 lbf
Outer Material	4130 Alloy Steel-Heat Treated-Corrosion Resistant Plating
Lube Fitting	w/o Lube Fitting
Threads per Inch	24
Ball Material	Alloy Steel-Heat Treated-Chrome Plated
Thread Pitch	N/A
Axial Load	750 lb
Across Wrench Flats	0.437
Head Dia.	0.875 in
Housing Style	Female Rod End
Liner	N/A
Ball Dia.	0.625 in
Housing Width	0.344 in
Thread Direction	Right Hand
Insert Material	Aluminum Bronze
Configuration	Female
Race Material	Carbon Steel - Corrosion Resistant Plating
Static Load Rating [Max]	7500 lbf
Bore Size	0.313 in
Thread Type	UNF
Right / Left Hand	Right Hand
Head Diameter	7/8 in
Housing Material	4130 Chrome Moly Steel, Cadmium Plated
Ball Width	0.437 in
Type	Female Rod End
Ball Flat Dia.	0.447 in
Weight	0.05 LB
EAN or UPC	662288718871
