AREL12

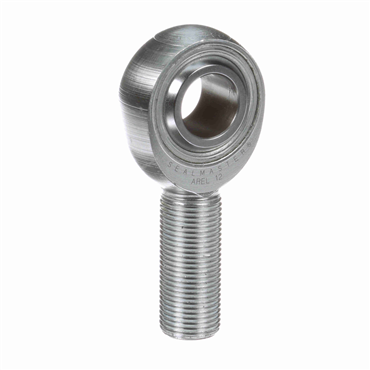

ARE Series Three-Piece Precision Extra Capacity Male Rod End

Item #101182575

Auto Replenish

each One-time purchase

Alternate Products

Aurora Bearing Co. AB-12

AB Series High Strength Precision Male Rod End

Item #101705287

each

Compare

Spherco AREL12

4130 or 4340 Alloy Steel 0.75 in ID Left-Handed Male Rod End

Item #105117994

each

Compare

Product Details

Three-piece construction offers flexibility for alternative race materials designed to solve specific application problems.

Catalog load ratings are not applicable when grease fittings are specified because of the reduced cross section of the head

Specifications

Race Material	Carbon Steel - Corrosion Resistant Plating
Angle of Misalignment	±7°
Liner	N/A
Lubrication	Non-Relubricatable
Type	Male Rod End
Thread Pitch	N/A
Threads per Inch	16
Ball Width	0.875 in
Head Dia.	1.75 in
Lube Fitting	w/o Lube Fitting
Misalignment Range	±7°
Housing Width	0.687 in
Lubrication Type	Grease
Thread Type	UNF
Housing Material	4130 Alloy Steel, Heat Treated, w/Protective Plating for Corrosion Resistance
Axial Load	2320 lb
Length Through Bore	0.875 in
Bearing Type	Rod End
Outer Material	4130 Alloy Steel-Heat Treated-Corrosion Resistant Plating
Thread Size	3/4-16
Head Diameter	1 3/4 in
Housing Style	Male Rod End
Static Load Rating [Max]	23200 lbf
Bore Size	0.75 in
Thread Direction	Left Hand
Construction	Three-Piece Rod End
Ball Material	Alloy Steel-Heat Treated-Chrome Plated
Configuration	Male
Ambient Temperature Range [Max]	350 °F
Static Radial Load [Max]	23200 lbf
Ball Dia.	1.312 in
Thread Length	1.719 in
Grade	Precision
Insert Material	Carbon Steel, Protective Coated for Corrosion Resistance
Right / Left Hand	Left Hand
Length to Center of Ball	2.875 in
Ball Flat Dia.	0.978 in
Weight	0.645 LB
EAN or UPC	662288719397
