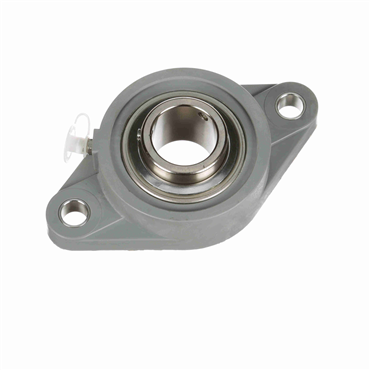

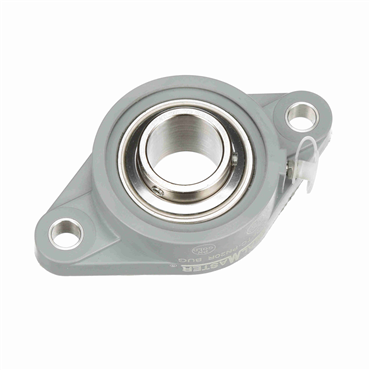

Composite 2-Bolt Flange Set Screws Lock Standard Duty Flange Unit
Item #101999953
each
2-Bolt Flange Type
Composite Housing Material
Phosphorus Nickel Bearing Insert Coating
Set Screw Locking Type
features
High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant
Measure Units
Inch
Bearing Type
Ball Bearing
Housing Material
Composite
Inner Ring OD (in)
1.594
Series
CRFTC-PN
Locking Type
Set Screws
Flange Type
2-Bolt Flange
Centerline to Front Face
0.875 in
Internal Clearance
Standard
Angle of Misalignment
±2°
Bore Size
1.25 in
Bolt Size
0.438 in
Inner Race Heat Treat Method
Zone-Hardened
Overall Length
5.688 in
Bolt Center-to-Center Length
4.594 in
Outer Ring Land Profile
Standard
Bolt Size (in)
0.4375
Overall Height to Inner Ring (in)
1.563
Overall Height to Inner Ring
1.563 in
Bolt Center-to-Center Length (in)
4.5940
Locking Device
Setscrew Locking Collar
Housing Color
Light Gray
Certifications
IP69K
Speed [Max]
2300 rpm
Insert No.
PN-20R
Seal Type
Triple Lip Contact
Bore Shape
Straight
Centerline to Front Face (in)
0.875
Overall Length (in)
5.688
Housing Base
Solid
Platform
PN Gold
Housing Construction
One Piece
Inner Ring O.D.
1.594 in
Foot Height
1.219 in
Maximum Operating Temperature
220
Expansion
No
Pilot Configuration
No Pilot
Duty Series
Standard
Bearing Design
Non-Expansion
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Shaft Dia.
1.25 in
Replaceable Insert
Yes
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Misalignment Type
Static Only
Backside Shield/Seal
Optional backside shield available order separate
Relubricatable
Yes
End Cap
Yes
Mounted Unit Duty
Standard Duty
Foot Height (in)
1.219
Retainer Type
Land Riding
Bearing Insert Coating
Phosphorus Nickel
Inch/Metric
Inch
Bore Size - Inch
1.25
Operating Temperature [Max]
220 °F
Weight
1.062 LB
EAN or UPC
662461336953
