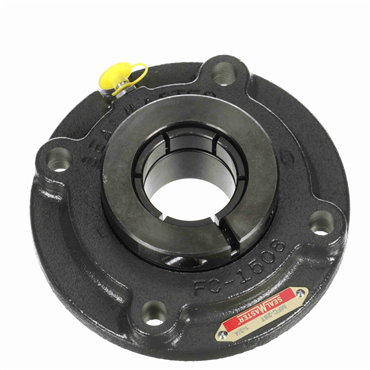

705632 / Gold Line

MFC-28T

705632 / Gold Line
Item #101178774
705632 / Gold Line
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options

description

  • Pilot dimension fits in customer's machine.

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Skwezloc® concentric locking for near perfect concentricity
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Maximum Operating Temperature 220
Collar OD (in) 3.25
Expansion No
Internal Clearance Standard
Duty Series Medium
Seal Type Felt Labyrinth
Angle of Misalignment ±2°
Bore Size 1.75 in
Pilot Configuration No Pilot
Collar O.D. 3.25 in
Housing Construction One Piece
Locking Device Setscrew Locking
Retainer Type Land Riding
Housing Color Gray
Bolt Center Dia. 5.125 in
Lubrication Lithium Complex NLGI 2 Grease
Cartridge Width 1.39 in
Housing Base Solid
Inner Race Length (in) 2.094
Flange Type Piloted Flange
Foot Height (in) 0.438
Inner Race Length 2.094 in
Housing Type Flange, Piloted
Bore Shape Straight
Relubricatable Yes
Insert No. 3-112T
Pilot Diameter (in) 4.25
Insert Material 52100 Bearing Steel, Black Oxided
Measure Units Inch
Bearing Design Non-Expansion
Duty Medium-Duty
Housing OD (in) 6.125
Inner Race Heat Treat Method Zone-Hardened
Housing O.D. 6.125 in
Centerline to Front Face 1.344 in
O.D. 6.125 in, 155.6 mm
Inch/Metric Inch
Operating Temperature [Max] 220 °F
Bore Size - Inch 1.75
Pilot Diameter 4.25 in
Replaceable Insert Yes
Bearing Insert Coating Black Oxide
Bolt Center-to-Center Length (in) 6.1250
Housing Material Cast Iron
Bearing Type Ball Bearing
Bolt Center Diameter (in) 5.125
Bolt Size 0.438 in
Speed [Max] 5000 rpm
Foot Height 0.438 in
Shaft Dia. 1.750 in
Centerline to Front Face (in) 1.344
End Cap No
Locking Type Concentric
Bolt Size (in) 0.4375
Misalignment Type Static Only
Outer Ring Land Profile Standard
Weight 6.875 LB
EAN or UPC 662461031766
