MP-316C

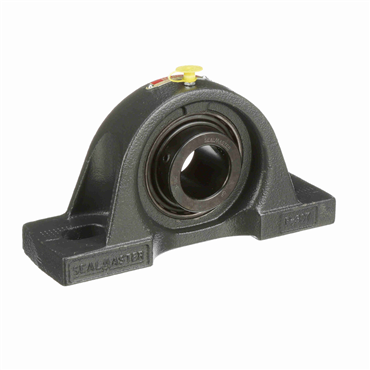

710570 / Gold Line Ball Bearing

Item #101179007

Auto Replenish

each One-time purchase

Alternate Products

Sealmaster MP-316

MP Series Medium-Duty Pillow Block

Item #101179006

each

Compare

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

Specifications

Angle of Misalignment	±2°
Inch/Metric	Metric
Insert Material	52100 Bearing Steel, Black Oxided
Duty Series	Medium
Bearing Insert Coating	Black Oxide
Overall Length	15 in
Bolt Size	0.875 in
Centerline to Front Face (in)	2.03125
Pillow Block Type	2-Bolt
Housing Base	Solid
Outer Ring Land Profile	Standard
Bore Shape	Straight
Housing Material	Cast Iron
Inner Race Length (in)	3.375
Retainer Type	Land Riding
Locking Type	Setscrew
Bolt Center [Max]	12.563 in
Bore Size - Metric	80
Bolt Center Max (in)	12.5625
Base Width	4 in
Maximum Operating Temperature	220
Platform	Gold Line Ball Bearing
Foot Height (in)	1.25
Overall Length (in)	15
Operating Temperature [Max]	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Bolt Center Min (in)	9.6875
Insert No.	5316C
End Cap	No
Bolt Size (in)	7/8
Housing Type	Pillow Block
Bolt Center [Min]	9.688 in
Inner Race Length	3.375 in
Brand.	Sealmaster
Seal Type	Contact
Overall Height	8 in
Centerline to Front Face	2.031 in
Housing Color	Gray
Bore Size	80 mm
Expansion	No
Rolling Element	Ball
Replaceable Insert	Yes
Housing Construction	One Piece
Misalignment Type	Static Only
Relubricatable	Yes
Foot Height	1.25 in
Speed [Max]	1850 rpm
Internal Clearance	Standard
Measure Units	Metric
Overall Height (in)	8
Base Width (in)	4
Lubrication	Lithium Complex NLGI 2 Grease
Weight	44.1 LB
EAN or UPC	662461056479
