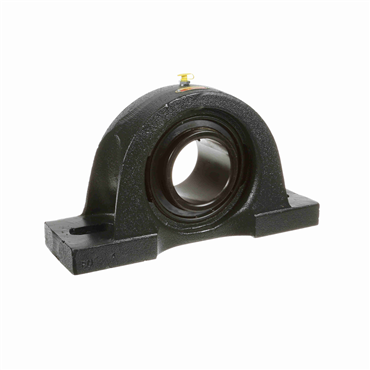

704225 / Gold Line Ball Bearing

MP-56C

704225 / Gold Line Ball Bearing
Item #101178981
  • Contact Seal Type
704225 / Gold Line Ball Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Contact Seal Type

description

  • Dimensionally interchangeable with many competitive units.

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Single lip contact seal
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Outer Ring Land Profile Standard
Insert Material 52100 Bearing Steel, Black Oxided
Inner Race Length 3.781 in
Speed [Max] 1725 rpm
Inner Race Heat Treat Method Zone-Hardened
Measure Units Inch
Bore Size - Inch 3.5
Inner Race Length (in) 3.781
Maximum Operating Temperature 220
Inner Ring O.D. 4.391
Centerline to Front Face (in) 2.219
Housing Base Solid
Operating Temperature [Max] 220 °F
Housing Construction One Piece
Platform Gold Line Ball Bearing
Housing Color Gray
Inner Ring OD (in) 4.391
Housing Material Cast Iron
Bolt Size (in) 0.875
Internal Clearance Standard
Bolt Size 0.875 in
Duty Series Medium
Bolt Center Min (in) 9.625
Bore Shape Straight
Insert No. 2-38C
Pillow Block Type 2-Bolt
Bolt Center [Min] 9.625 in
Brand. Sealmaster
Base Width (in) 4.375
Bolt Center Max (in) 12.625
Inch/Metric Inch
Overall Height (in) 8.25
Lubrication Lithium Complex NLGI 2 Grease
Bolt Center [Max] 12.625 in
Rolling Element Ball
Retainer Type Land Riding
Seal Type Contact
Overall Height 8.25 in
Angle of Misalignment ±2°
Centerline to Front Face 2.219 in
Bore Size 3.5 in
Foot Height 1.313 in
Replaceable Insert Yes
Housing Type Pillow Block
Relubricatable Yes
End Cap No
Expansion No
Base Width 4.375 in
Overall Length 15 in
Locking Type Setscrew
Overall Length (in) 15
Misalignment Type Static Only
Bearing Insert Coating Black Oxide
Foot Height (in) 1.313
Weight 48.125 LB
EAN or UPC 662461026830
