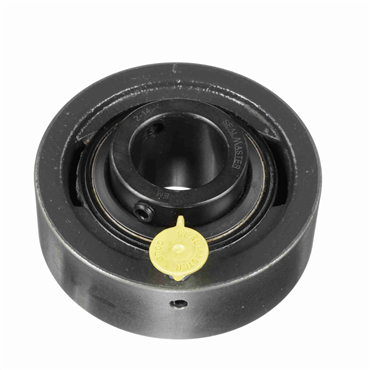

MSC-20

701919 / Gold Line Setscrew

Item #101179077

Auto Replenish

each One-time purchase

Alternate Products

Dodge CYLSC104

SC Series Cartridge Unit

Item #101921783

each

Compare

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Outer Diameter (in)	3.875
Lubrication	Lithium Complex NLGI 2 Grease
Overall Width (in)	1.688
Insert No.	2-14
Internal Clearance	Standard
Angle of Misalignment	±2°
O.D.	3.875 in
Inner Ring O.D.	1.859 in
Duty	Medium-Duty
Speed [Max]	4650 rpm
Radial Static Load Capacity (lb)	3493
Retainer Type	Land Riding
Duty Series	Medium
Inner Race Length	1.688 in
Bore Shape	Straight
Housing Type	Cylindrical Cartridge
Bore Size - Inch	1.25
End Cap	No
Bearing Insert Coating	Black Oxide
Locking Device	Setscrew Locking
Bore Size	1.25 in
Radial Dynamic Load Capacity (lb)	5782
Radial Dynamic Load Capacity	5782 lb
Cartridge Width (in)	1.219
Housing Color	Gray
Series	MSC
Expansion	No
Inch/Metric	Inch
Overall Width	1.688 in
Relubricatable	Yes
Centerline to Front Face	1 in
Bearing Type	Ball Bearing
Shaft Dia.	1.250 in
Insert Material	52100 Bearing Steel, Black Oxided
Seal Type	Felt Labyrinth
Inner Ring OD (in)	1.859
Housing Material	Cast Iron
Replaceable Insert	Yes
Operating Temperature [Max]	220 °F
Cartridge Width	1.22 in
Locking Type	Set Screws
Bearing Design	Non-Expansion
Inner Race Length (in)	1.688
Measure Units	Inch
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature	220
Misalignment Type	Static Only
Housing Construction	One Piece
Centerline to Front Face (in)	1
Outer Ring Land Profile	Standard
Weight	3.03 LB
EAN or UPC	662461014301
