MSC-43

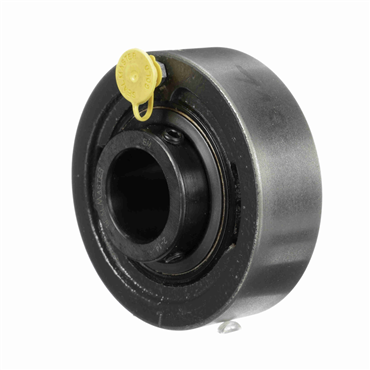

701932 / Gold Line Setscrew

Item #101179117

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

Specifications

Housing Color	Gray
Insert No.	3-211
Relubricatable	Yes
Inner Ring OD (in)	3.656
Centerline to Front Face	1.75 in
Bore Size	2.688 in
Radial Dynamic Load Capacity (lb)	14839
Expansion	No
Angle of Misalignment	±2°
Housing Construction	One Piece
Inner Race Length (in)	3.063
Cartridge Width	2 in
Duty	Medium-Duty
Replaceable Insert	Yes
Duty Series	Medium
Internal Clearance	Standard
Radial Static Load Capacity (lb)	11224
Bore Size - Inch	2.688
Locking Type	Setscrew
Centerline to Front Face (in)	1.75
Rolling Element	Ball
Housing Type	Cartridge, Cylindrical
Maximum Operating Temperature	220
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Bore Shape	Straight
Lubrication	Lithium Complex NLGI 2 Grease
Outer Ring Land Profile	Standard
Inch/Metric	Inch
Series	MSC
Outer Diameter (in)	6.625
Inner Ring O.D.	3.656
Overall Width	3.063 in
Seal Type	Felt Labyrinth
Operating Temperature [Max]	220 °F
Speed [Max]	2450 rpm
Radial Static Load Capacity	11224 lb
Inner Race Length	3.063 in
Measure Units	Inch
Inner Race Heat Treat Method	Zone-Hardened
Cage Material	Brass
End Cap	No
Insert Material	52100 Bearing Steel, Black Oxided
O.D.	6.625 in
Bearing Type	Ball Bearing
Shaft Dia.	2.6875 in
Housing Material	Cast Iron
Locking Device	Setscrew Locking
Retainer Type	Land Riding
Cartridge Width (in)	2
Overall Width (in)	3.063
Bearing Design	Non-Expansion
Weight	14.1 LB
EAN or UPC	662461014417
